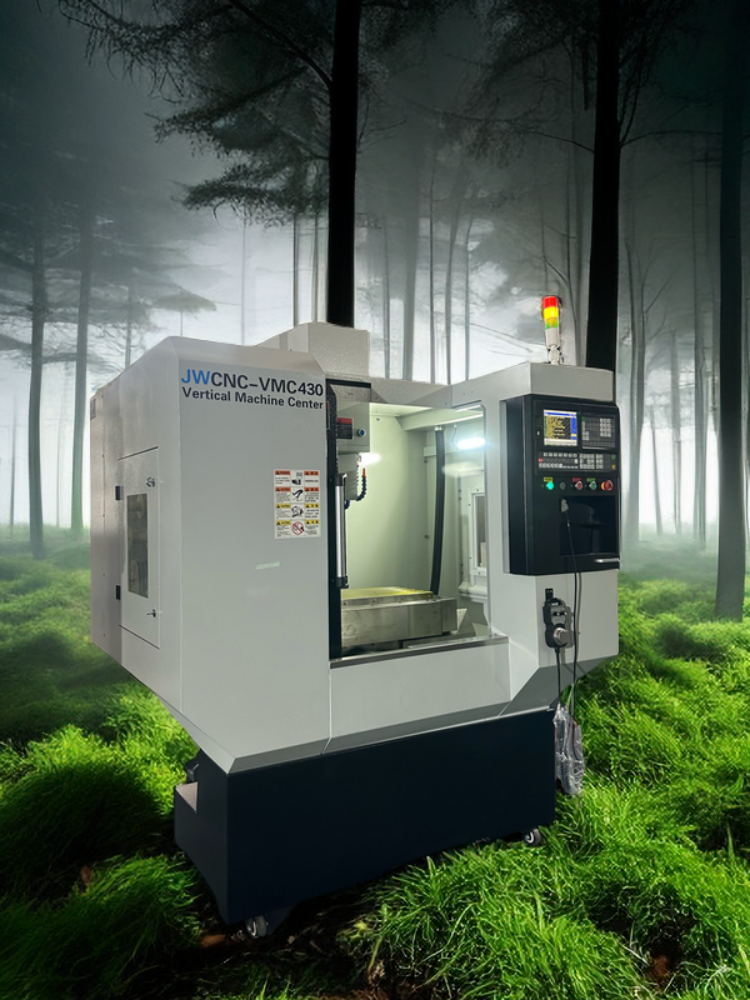

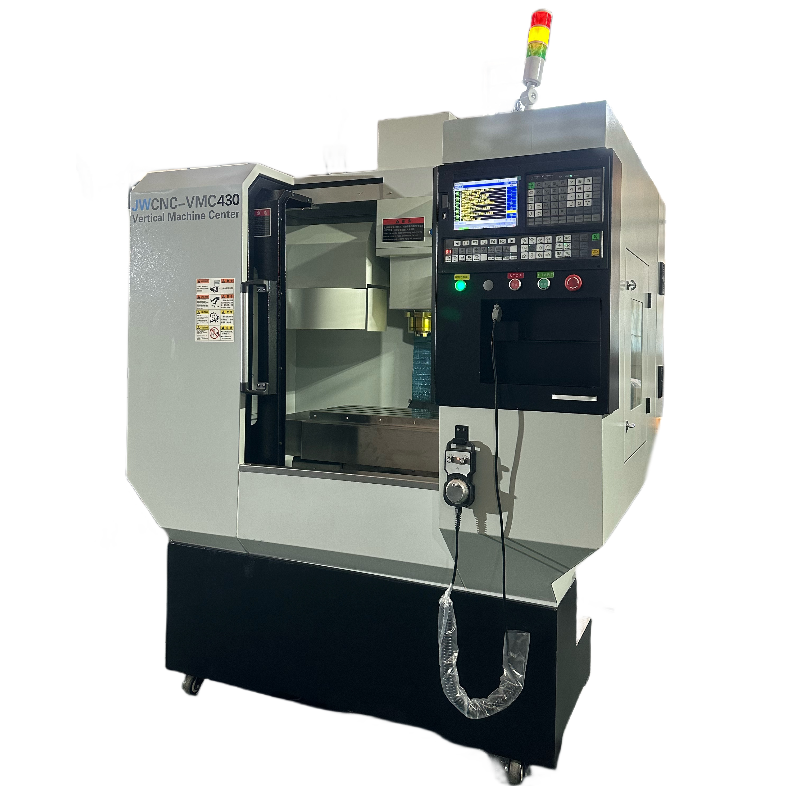

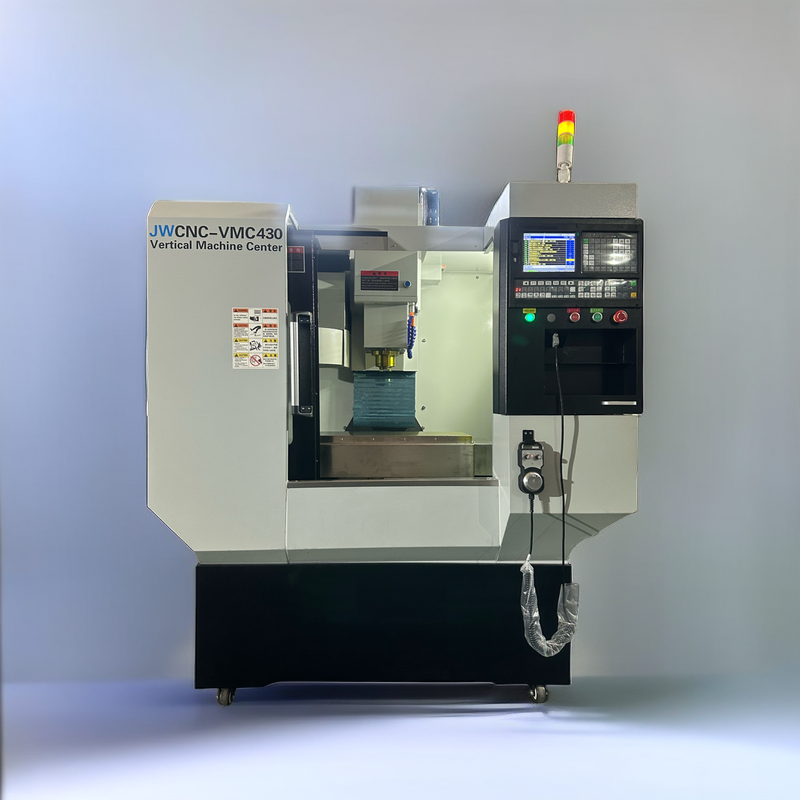

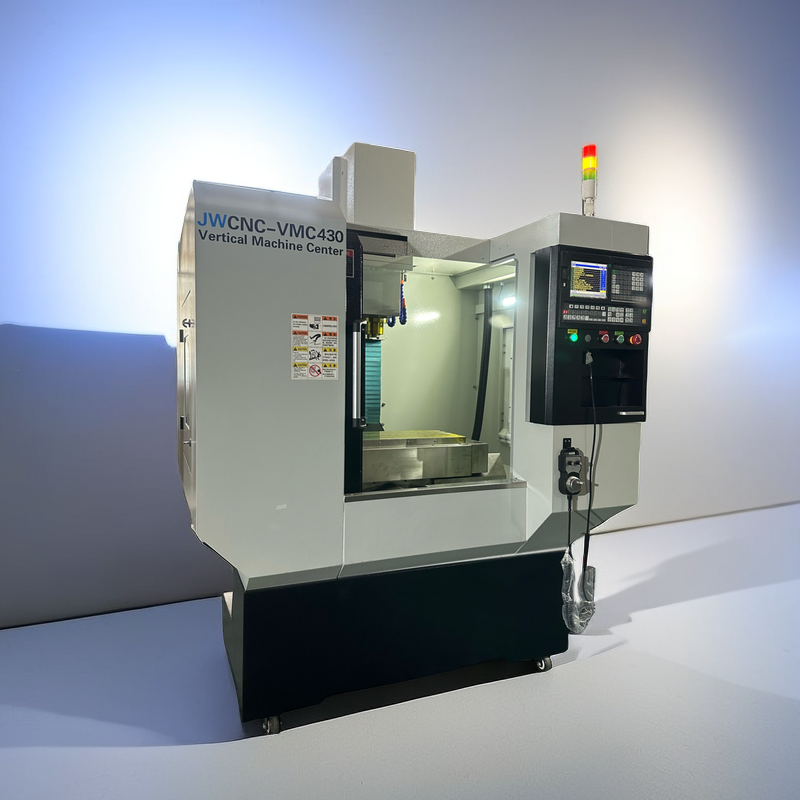

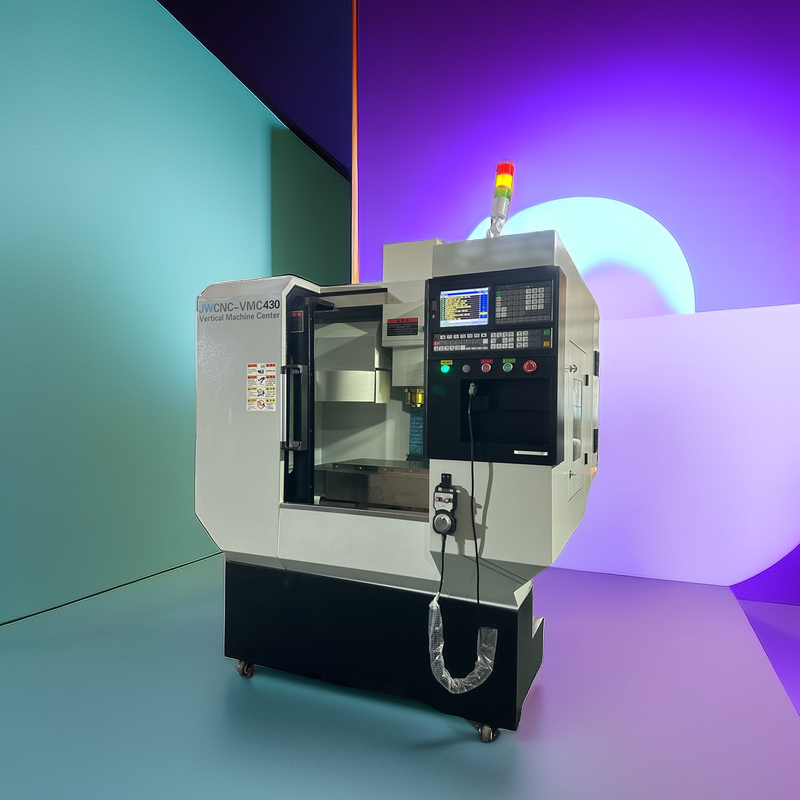

VMC430 CNC Milling Machine

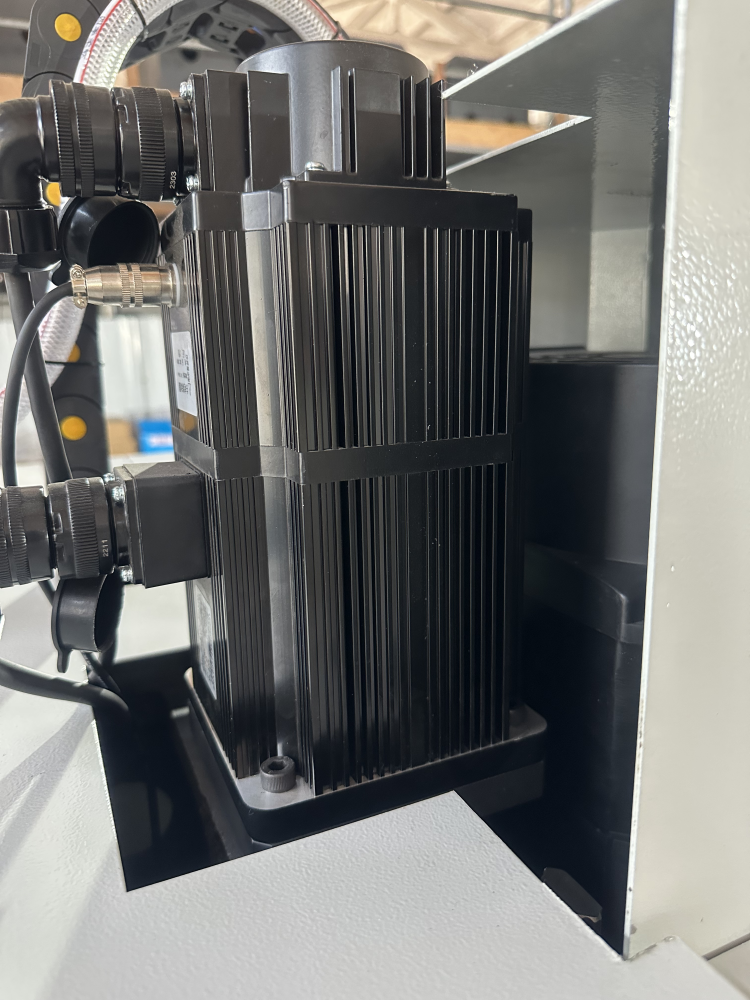

Drive and Motor: XY 1.8KW, Z 2KW Servo

System: Guangzhou Keyuan 100MC Four - axis CNC System (with Handwheel)

Spindle Assembly: Spindle Motor 2.2KW, 14N Servo Motor

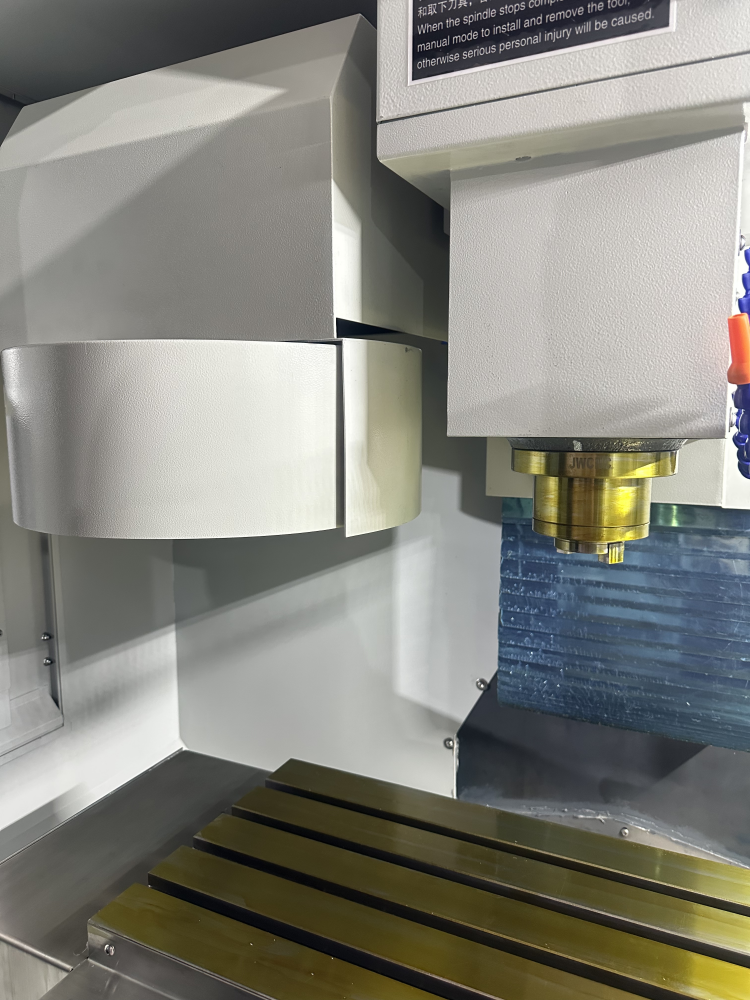

Spindle: BT30 Mechanical, 8000 RPM

Machine Tool Accessories: Integral Sheet Metal and Base

Dimensions: 1650*1480*2000

Cutting Fluid: Spindle Water Pump

With Water Tank, Nozzles, Pipes, Lighting

Optional: Fourth Axis, Worm and Worm Gear High - Precision Four - axis Reducer, 100 Chuck

Tool Magazine: 12 - position ATC (A - type Tool Changer)

After - sales Maintenance and Warranty:

One - year warranty for the whole machine. For the control board, driver, frequency converter and water pump, the warranty period is subject to the manufacturer's regulations.

4030 Column CNC Milling Machine, Bare Machine Configuration

Stroke: X400, Y300, Z400

Guide Rails: Taiwan Yintai Ball Guide Rails XYZ25

Lead Screws: Taiwan DTK Ball Screws C7 XYZ2510

Total Machine Weight: Approximately 1550KG

T - slot: M10*4

Straightness of Three Axes: 0.01 / 200MM

Perpendicularity of Three Axes: 0.01 / 200MM

Flatness of Workbench: 0.01 / 200MM

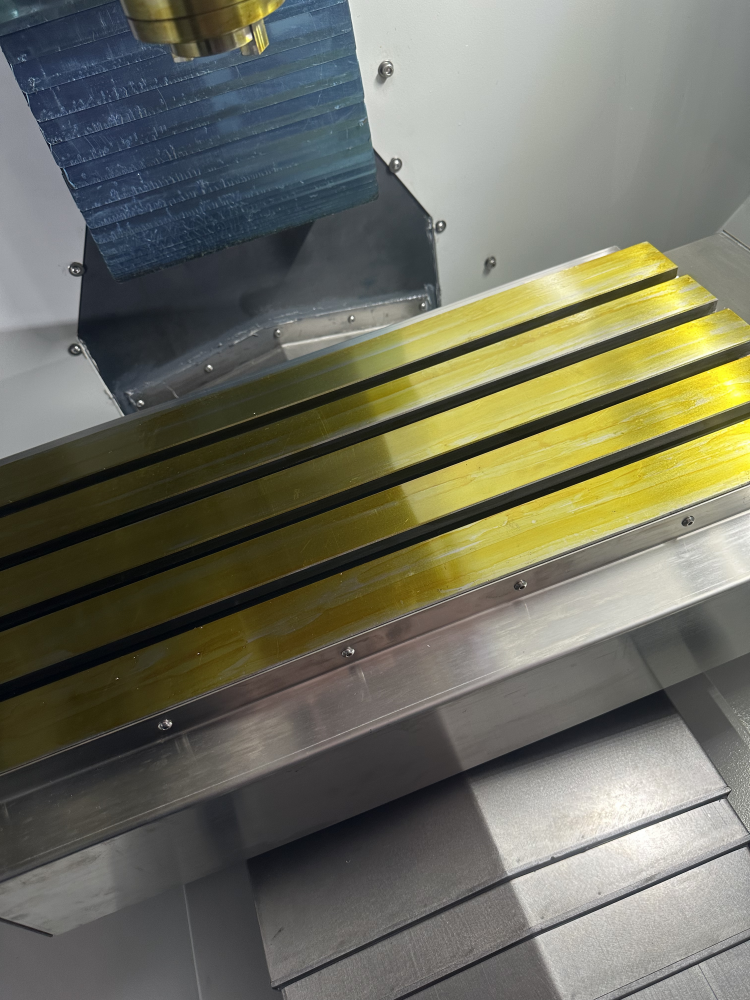

Workbench Dimensions: 700*280MM

XYZ Rapid Traverse Feed: 28000MM/MIN

Repeat Positioning Accuracy of Linear Axes: ≤0.01MM
