Customizable 8-pole, 50% more torque than 6-pole

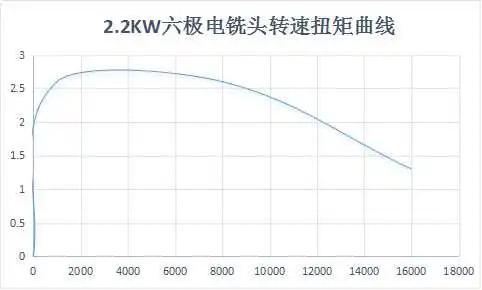

2.2 Six-pole torque 2.6 nm, 2.2 eight-pole torque 3.5 nm

6poles 8000rpm 8poles 6000rpm

Frequency converter internal frequency, reference frequency, rated frequency: 2 poles, 4 quadrupoles, 6 poles m,8 pole can be 0-500Hz

6 pole speed adjustable range: 1000-8000 RPM

4 pole speed adjustable range: 1500-12000 RPM

Power supply voltage: 220V/380V

Power supply frequency: 0-400Hz

emulsion water-cooled It can also be oil cooled

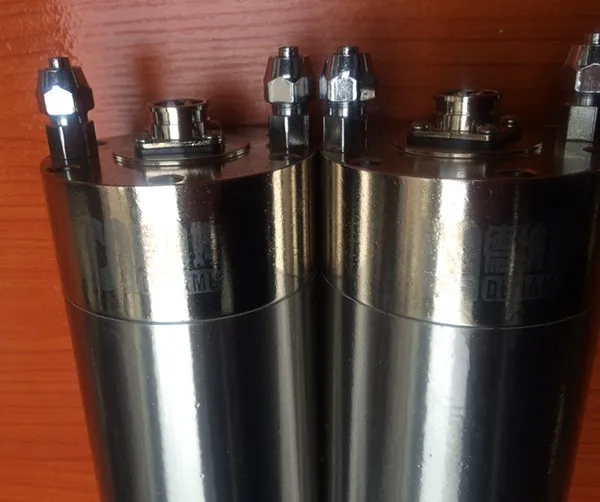

Must be liquid cooled, it has inlet and outlet on the spindle end

1.5KW long 280mm body diameter: 80mm

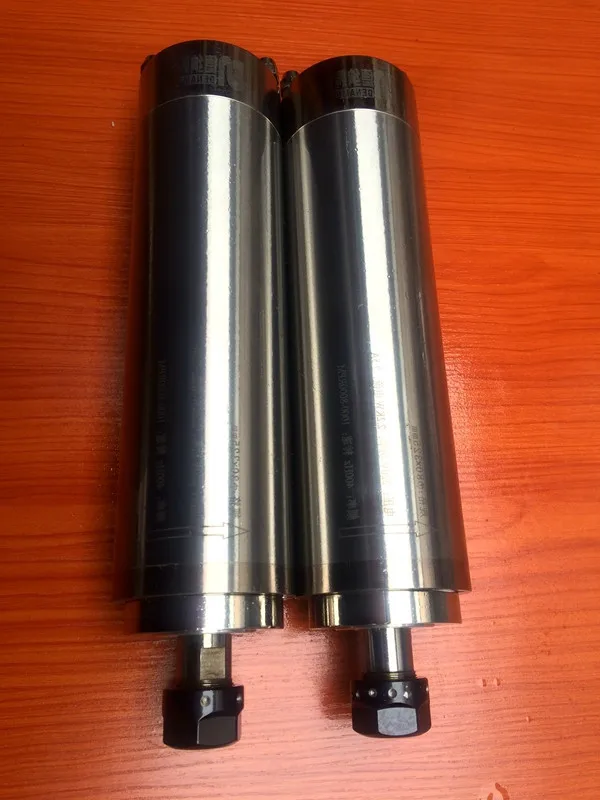

Output chuck:ER20

2.2KW long 325mm body diameter: 80mm

Output chuck:ER20

3.5KW long 320mm body diameter: 105mm

Output chuck:ER20

Weight:

1.5 KW: 8 kg

2.2 KW: 9 kg

3.5KW: 16Kg

Please use the inverter power to be more than 1.5 times the motor power

When the spindle is used horizontally and there is tool cooling water outside, it must be ventilated.

This price for 1 piece 6 poles spindle motor! ER20

Low speed 1000rpm~8000rpm,max. torque 2.6N.m!

front 7005 X 2pcs，rear 7004 X 2pcs

It Can cutting carbon steel,stainless steel,AL,Copper,hard wooden.

Taper hole grinding, beating 0.004mm

we also have 8 poles 2.2kw 220V spindle ,weight 9kg ER20

max. speed is 6000rpm when VFD 400hz,

max. torque is 3.5N.m

and we also have 4,6,8 poles 3.5kw 380V spindle weight 16kg

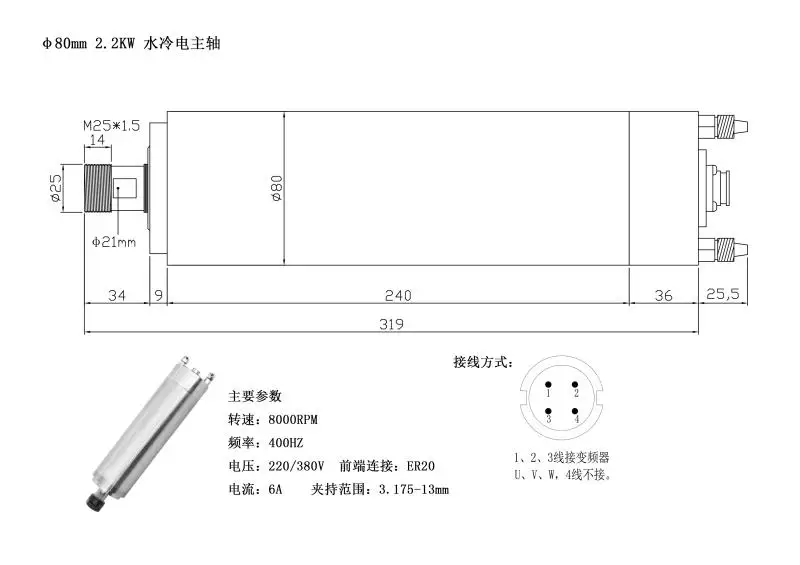

Descriptions:

Size: 80 mm diameter

Lenth:325mm

Voltage: 220v (inverter output voltage)

Frequency:0~400Hz

Speed: 1000-8000 r/min

Torque:1.5N.m~2.6N.m

collet: ER20
Clamp cutter diameter: 3.175~13mm
Cooling mode: water
Power: 2.2 KW

Net weight : 9KG

Notice:

The vector frequency converters's power rated  that drive this spindle must over 2.2KW!
