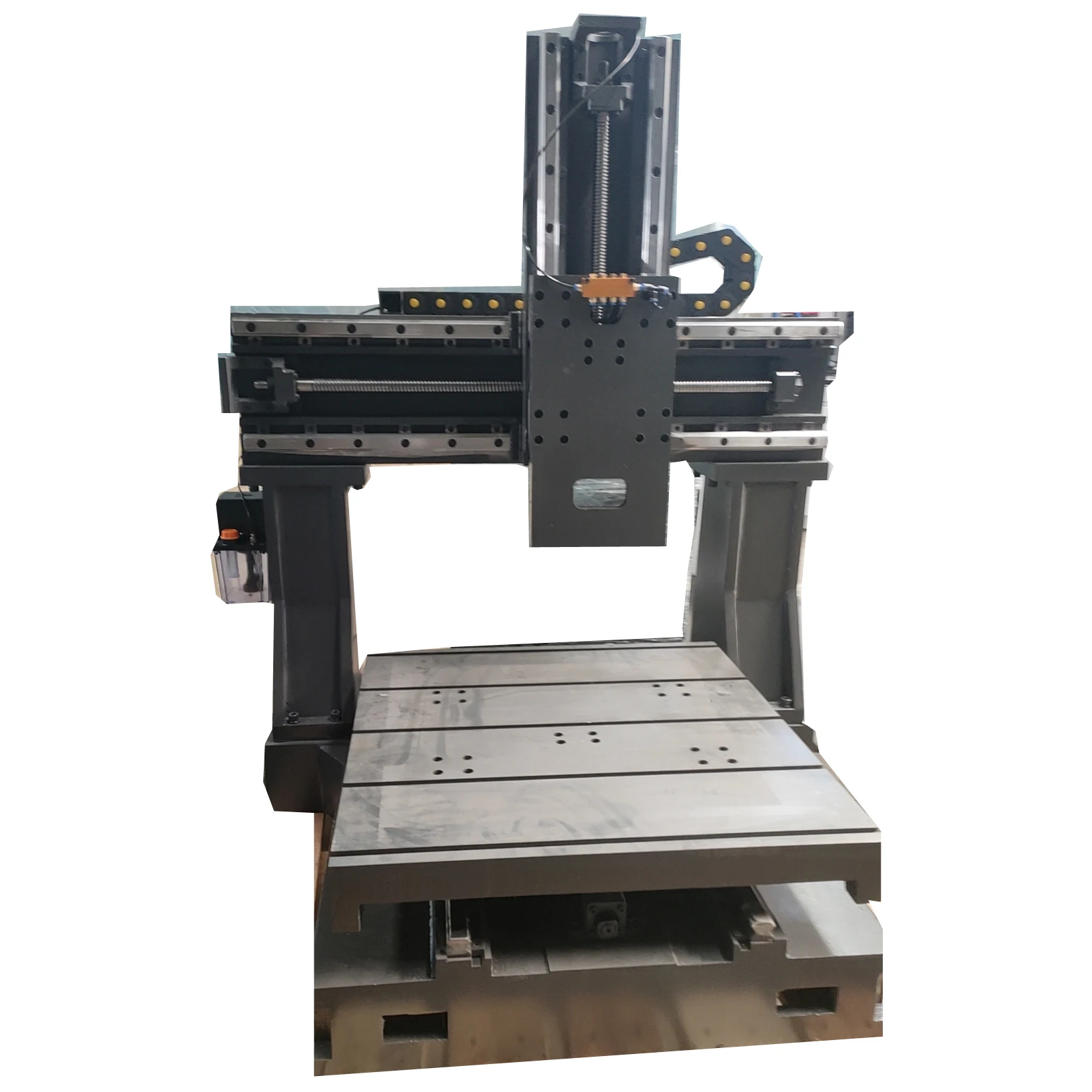

VMC5040 Small Cnc Milling Machine Gantry Tool Metal Jewelry Engraving Cast Iron Frame 3 Axis Wood Router DIY Kits Hobbies
✅

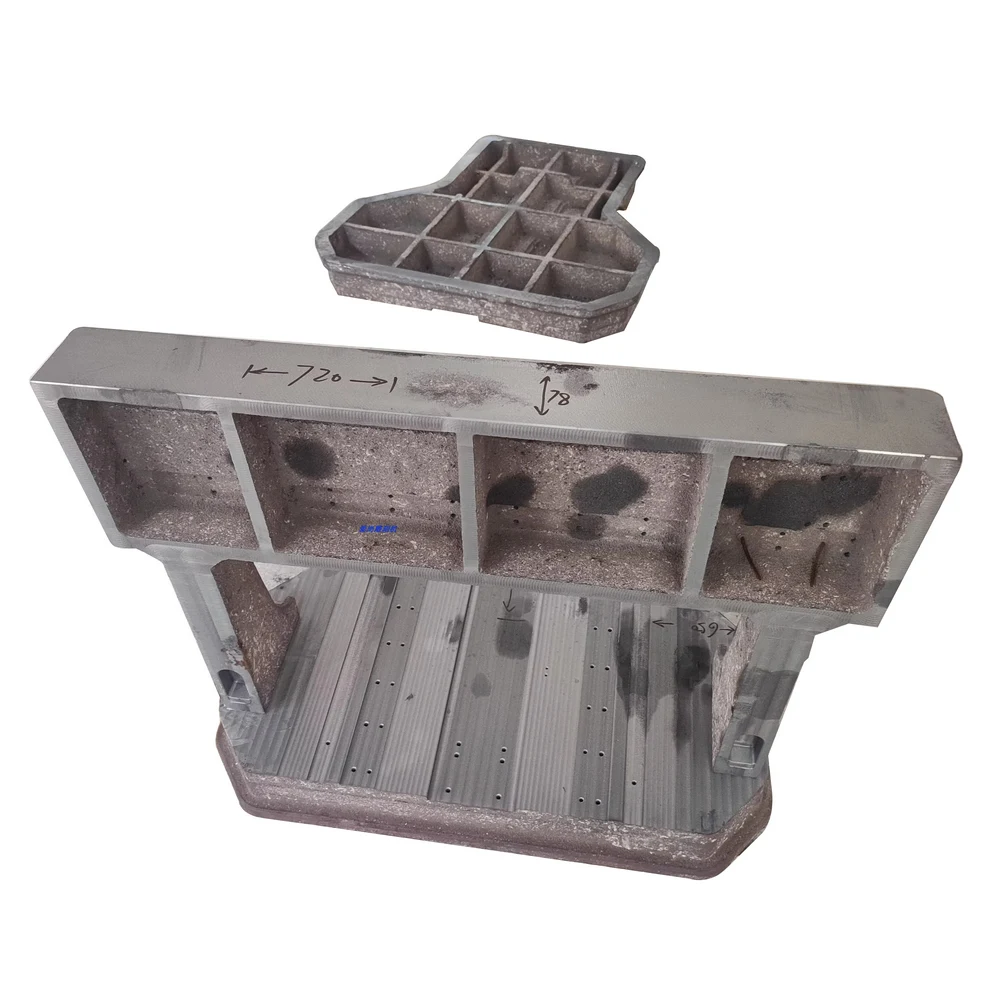

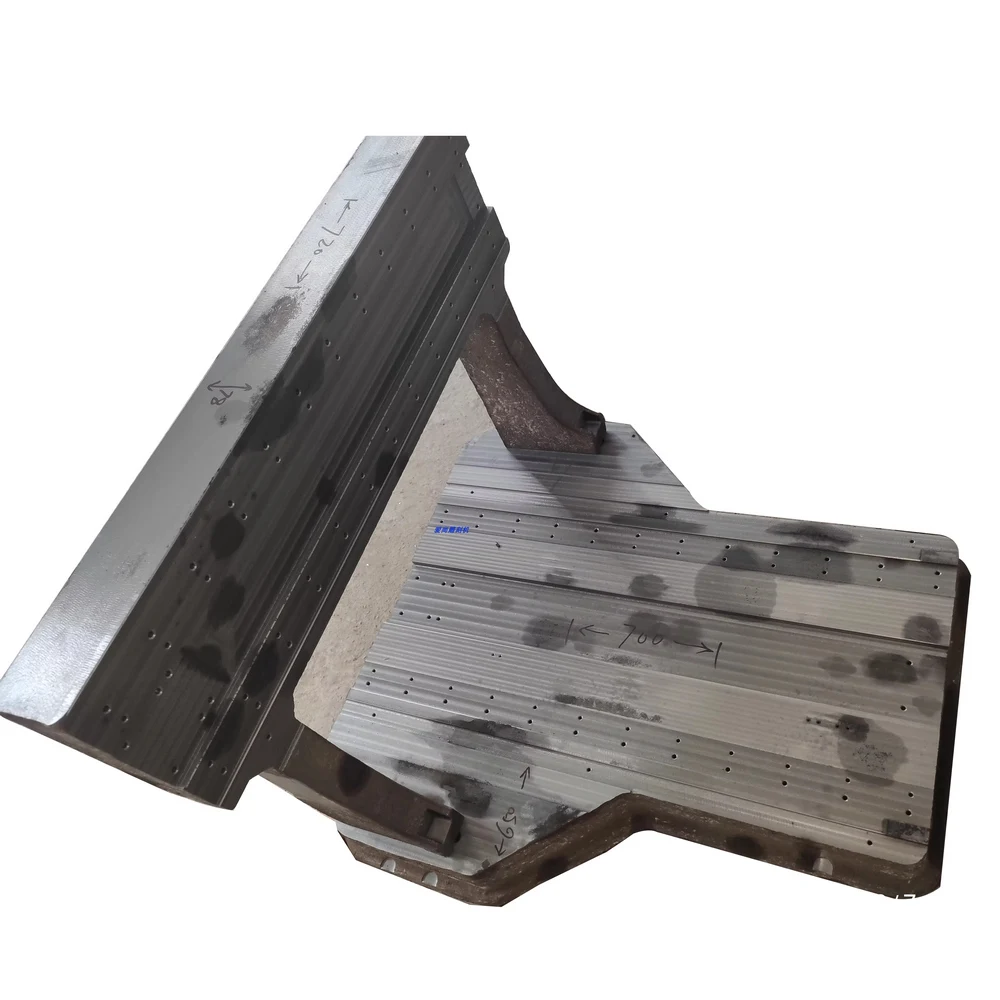

Precision Machined Cast Iron Machine BedHT250 / HT300 gray iron casting base, fully machined guide‑way surfaces, critical mounting faces finished to drawing tolerance, ready for assembly
AliExpress.
✅
Excellent Vibration Damping & RigidityHigh‑strength cast iron structure with optimized rib design, absorb cutting vibration, guarantee long‑term machine running accuracy for CNC lathe & machining center.
✅
Full‑Process Service AvailableFrom resin‑sand casting → stress relief → rough & finish machining. Custom holes, T‑slots, mounting interfaces as per your technical drawings.
✅
Rigorous Dimensional QCKey surfaces measured by CMM coordinate measuring machine. Tolerance controlled for flatness & parallelism. Supply inspection documents for key dimensions.
✅
OEM & Bulk Production SupportDirect factory output. Custom size & weight. Suitable for new machine assembling project. Fast lead time for serial orders.

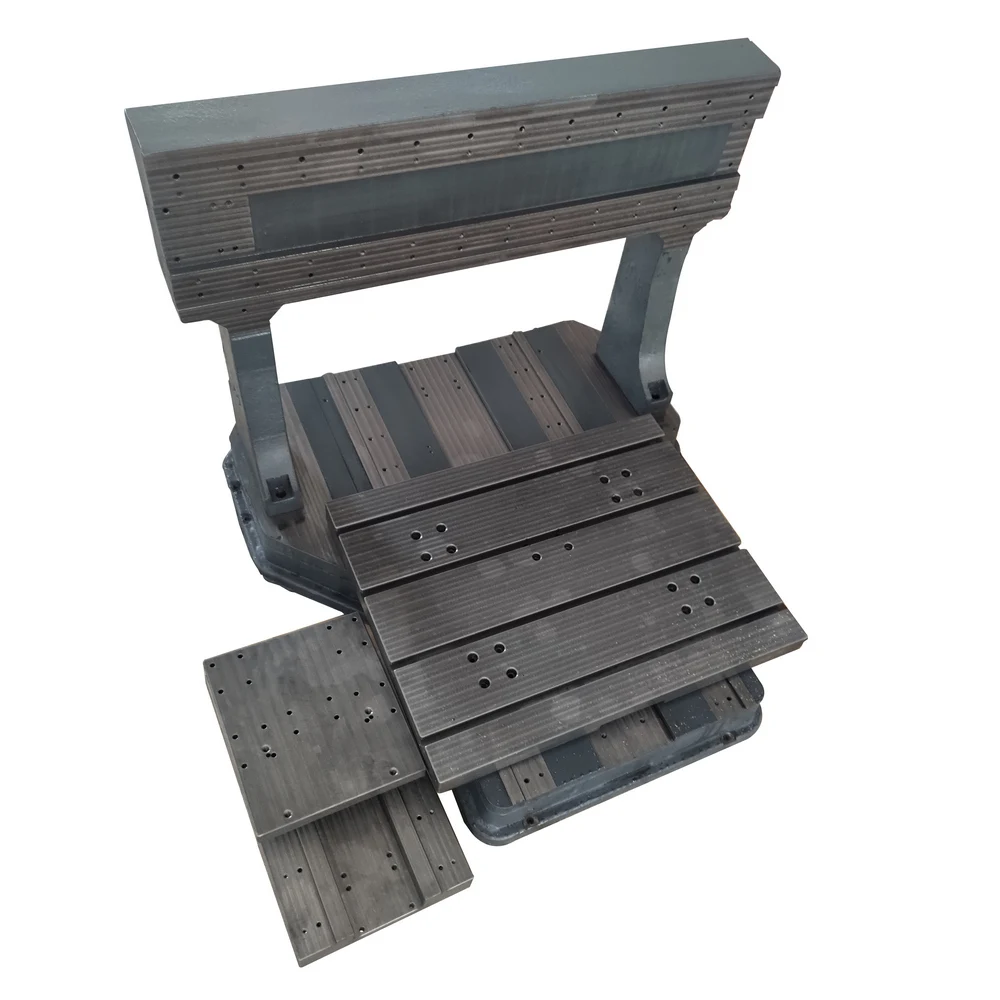

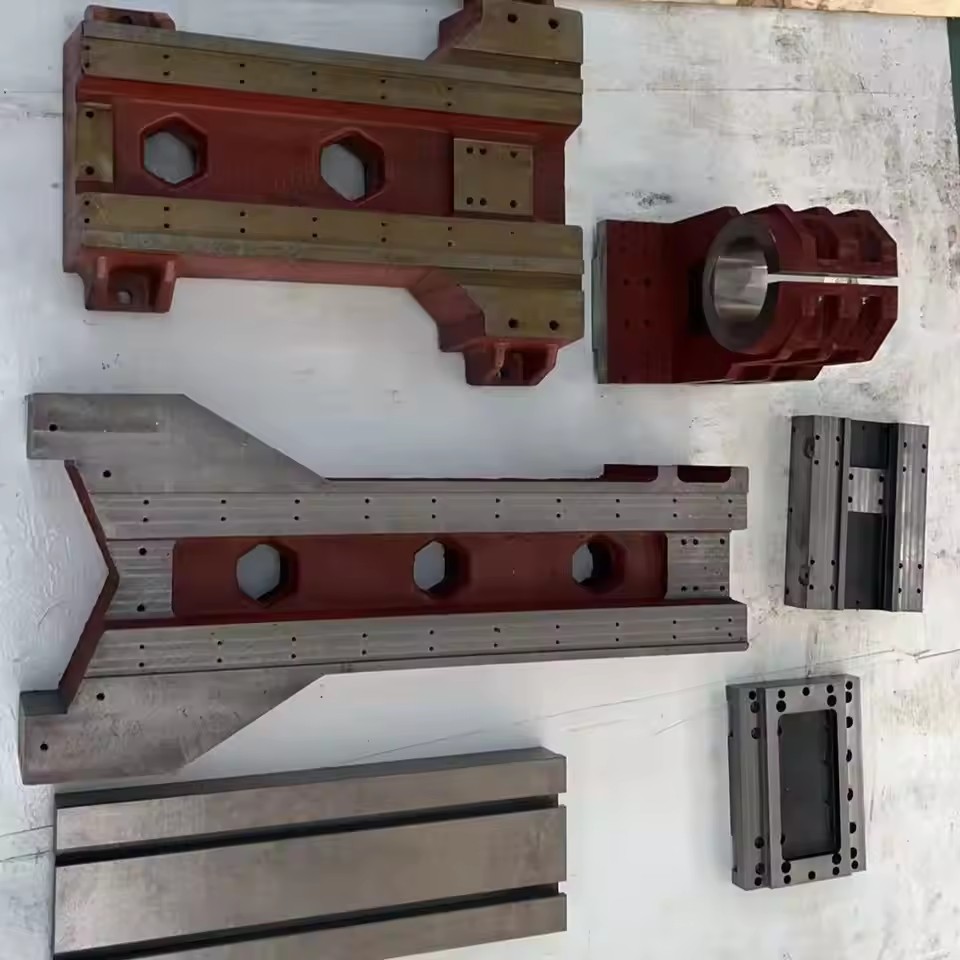

Include:
base x1pc,
worktable x1pc, 500X400mm
column(gantry version x2pcs ,other X1pc) ,
beam x1pc,
Z axis plate X 1pc
Not include spindle and spindle housing ,it is an optional parts.
NET weight 208 kg.
X 500mm Y 400mm Z 150mm Feight height is 200mm
X Y AXIS use HGH25CA linear railway use 20mm ball screw
Z Axis use HGH20CA linear railway. use 20mm ball screw
the mounting hole distance of ballscrew block is 15*54mm 45*58MM.

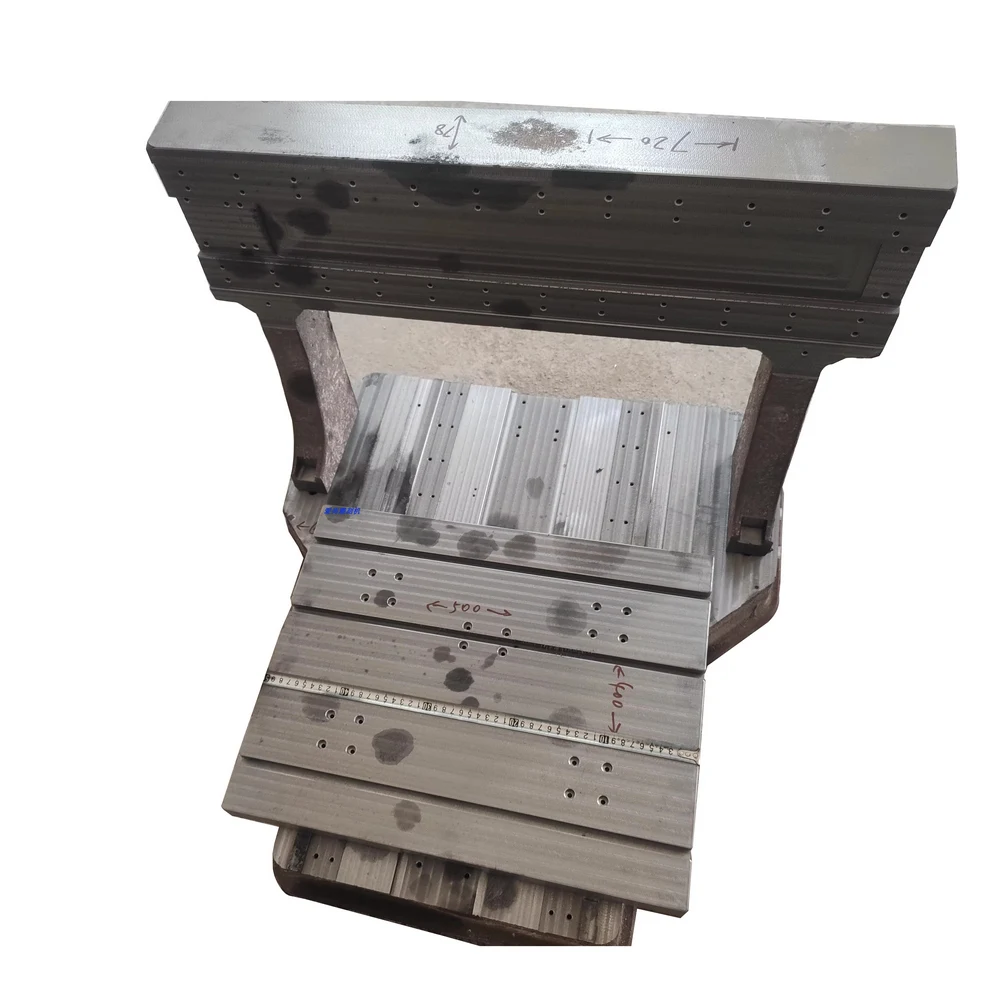

worktable is 500*400mm
Worktable height 80.5MM(screw center height x2).
the packing size of the wooden case is 76*78* 76CM.
we have other model, if you want to buy,please contact us!
THIS IS A HEAVY 6060 FRAME MACHINE
****************************************************************
Customer Satisfaction
Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Payment
1. Full payment must be paid within 7 days after placing your order.
2. We will make delivery of the goods within 3 working days after receiving your payment.
Shipping and handing
1. DHL is our preferred shipping method. Meanwhile TNT,EMS,Fedex,UPS are available.
2. Make sure to leave telephone number when filling your buyer information.
3.You can check the goods where it is in transit through tracking NO. .
Refund(Exchange Only)
1.If you are not satisfied with your purchase, you can exchange the items received. you must contact us within 5 days of the receipt of your order. And you should pay all additional shipping fees incurred and the items returned should be kept in their original status.
2.If you wish to exchange defective or incorrect shipped goods, please contact us within 5 days after receiving the goods.
Notes
1. The buyer are responsible for any insurance you think necessary.
2. The processing time for a specific order varies with the product type and stock status. Mostly, processing time can be 3 to 15 working days.
Feedback
1.Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It'll just take you 1 minute.
2.Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.Thank you!
Specifications:
Material: Cast Iron Frame
Type and Category: Small CNC Milling Machine
Design and Style: Gantry Tool with 3 Axis
Usage and Purpose: Metal Jewelry Engraving, Wood Router
Performance and Property: High Precision with 20mm Ball Screws
Parts and Accessories: Base, Worktable, Column, Beam, Z Axis Plate (Spindle and Spindle Housing Optional)
Dimensions: X 500mm Y 400mm Z 150mm with a Feight Height of 200mm
Features:
|Dro For Milling Machine|How To Embroider On Sewing Machine|
**Unmatched Precision and Versatility**

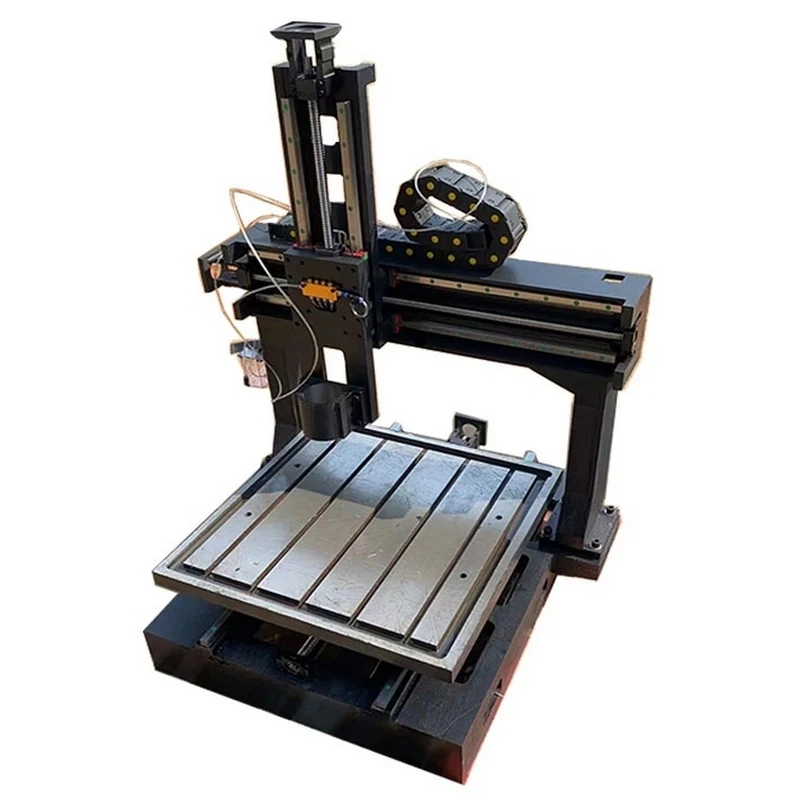

The VMC5040 Small CNC Milling Machine is a robust piece of equipment designed for hobbyists and professionals alike. Its cast iron frame ensures stability and durability, while the 3-axis gantry tool configuration provides the flexibility to tackle a wide range of projects. Whether you're engraving intricate metal jewelry or routing precise wood pieces, this machine delivers with a precision that is second to none. The use of 20mm ball screws on both the X and Y axes ensures smooth and accurate movement, making it ideal for intricate work requiring high accuracy.
**Ease of Use and Customization**
This desktop CNC milling machine is designed for ease of use, with a straightforward setup process that allows you to get started quickly. The optional spindle and spindle housing are easily installed, enabling you to customize your machine to suit your specific needs. The VMC5040's worktable measures 500x400mm, providing ample space for your projects, and the included mounting holes accommodate a variety of spindles, ensuring compatibility with your preferred tools.
**Ideal for a Variety of Applications**
Whether you're looking to embark on DIY projects or engage in professional jewelry making, the VMC5040 Small CNC Milling Machine is an excellent choice. Its compact size and lightweight design make it easy to transport and set up, making it suitable for both home and professional workshops. The machine's robust construction and high-performance capabilities make it a valuable addition to any hobbyist or professional's toolkit. With the VMC5040, the possibilities for creativity and precision are endless.
