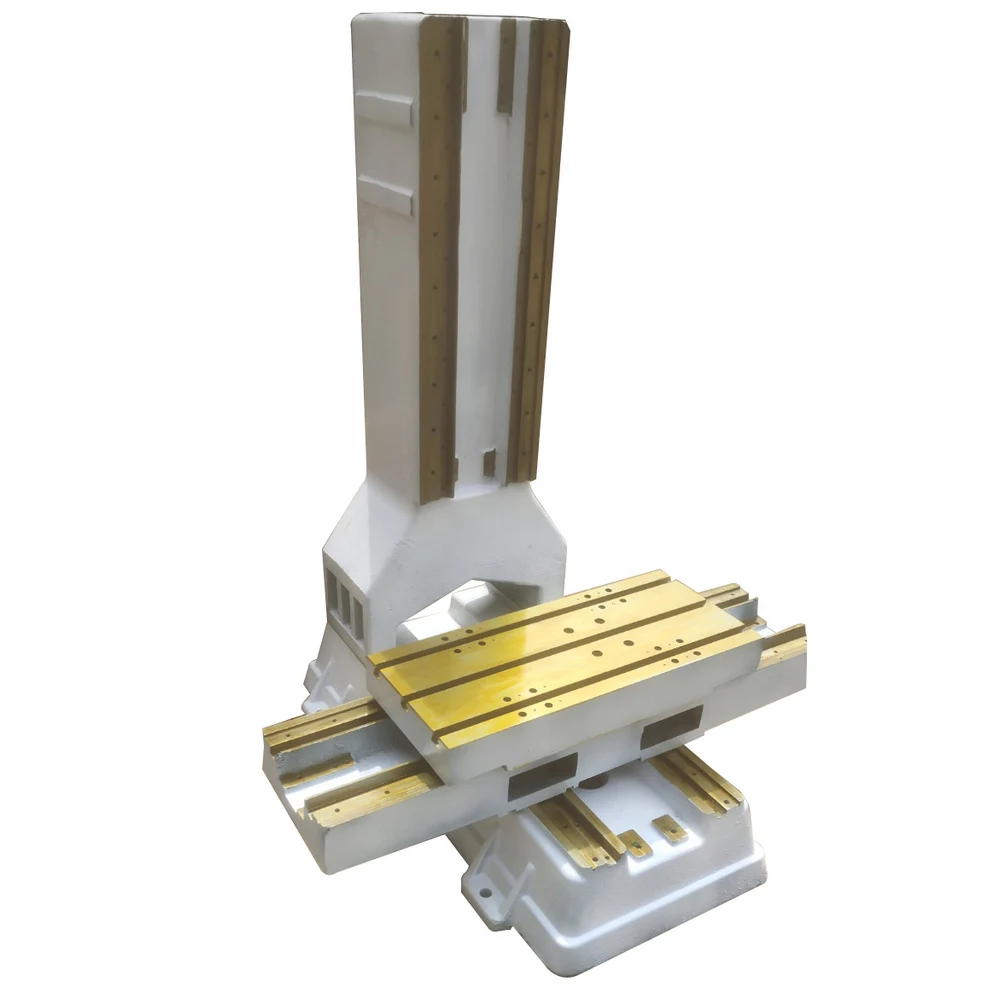

Small Casting Iron Frame Parts for VMC4020 Cnc Milling Machine Diy

Description:

oem machined cast iron cnc machine bed,precision machined machine tool bed part,finished cnc milling machine bed,cnc lathe bed with machined guide ways,heavy duty machined machine base casting


down load to pdf

product details

Specifications

  • Hign-concerned Chemical
    None
    Certification
    CE
  • Origin
    Mainland China
    Type
    Vertical
  • Condition
    New
    Brand Name
    fullmida
  • Model Number
    vmc4020
    CNC or Not
    CNC


Small Engraving Cnc Milling Machine Casting Iron Frame Vmc 4020 Diy Homemade Hot Sale Wood Routers Tool Kits

 Precision Machined Cast Iron Machine Bed

HT250 / HT300 gray iron casting base, fully machined guide‑way surfaces, critical mounting faces finished to drawing tolerance, ready for assemblyAliExpress.
✅ Excellent Vibration Damping & Rigidity
High‑strength cast iron structure with optimized rib design, absorb cutting vibration, guarantee long‑term machine running accuracy for CNC lathe & machining center.
✅ Full‑Process Service Available
From resin‑sand casting → stress relief → rough & finish machining. Custom holes, T‑slots, mounting interfaces as per your technical drawings.
✅ Rigorous Dimensional QC
Key surfaces measured by CMM coordinate measuring machine. Tolerance controlled for flatness & parallelism. Supply inspection documents for key dimensions.

✅ OEM & Bulk Production Support
Direct factory output. Custom size & weight. Suitable for new machine assembling project. Fast lead time for serial orders.

The color is iron grey

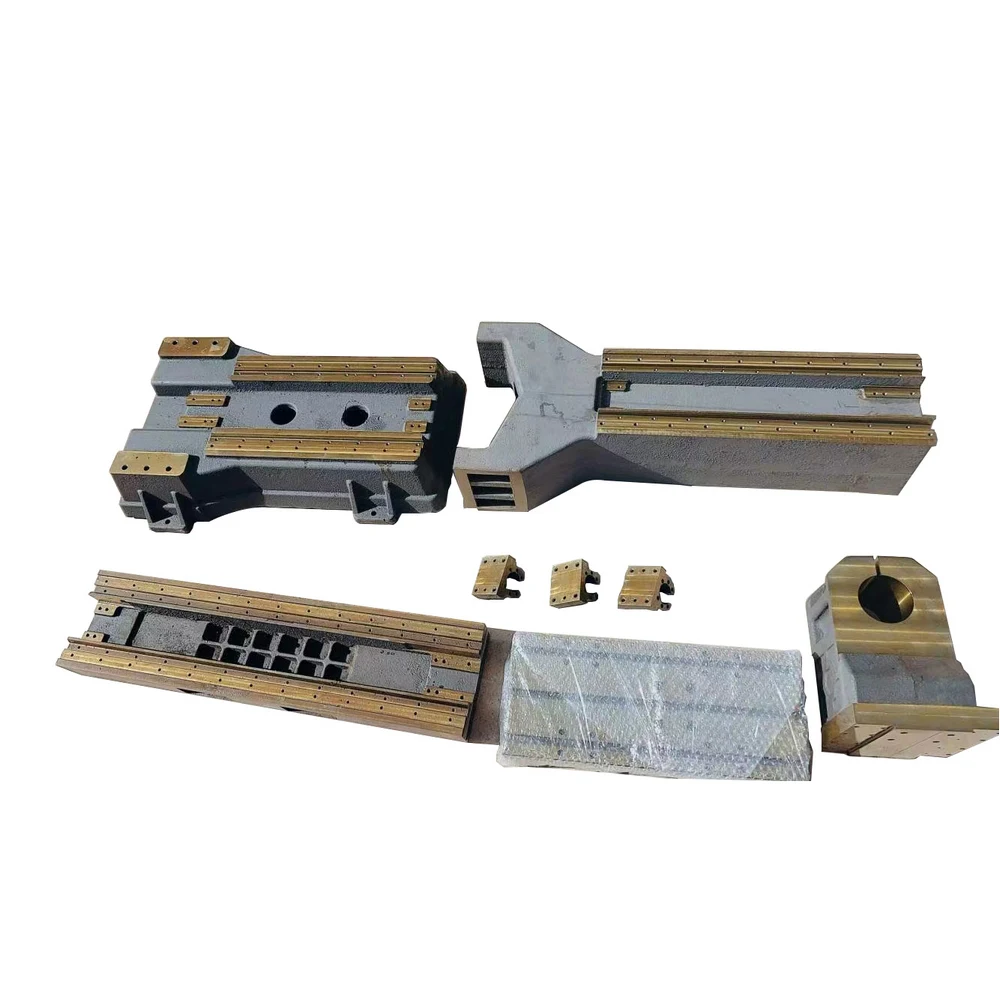

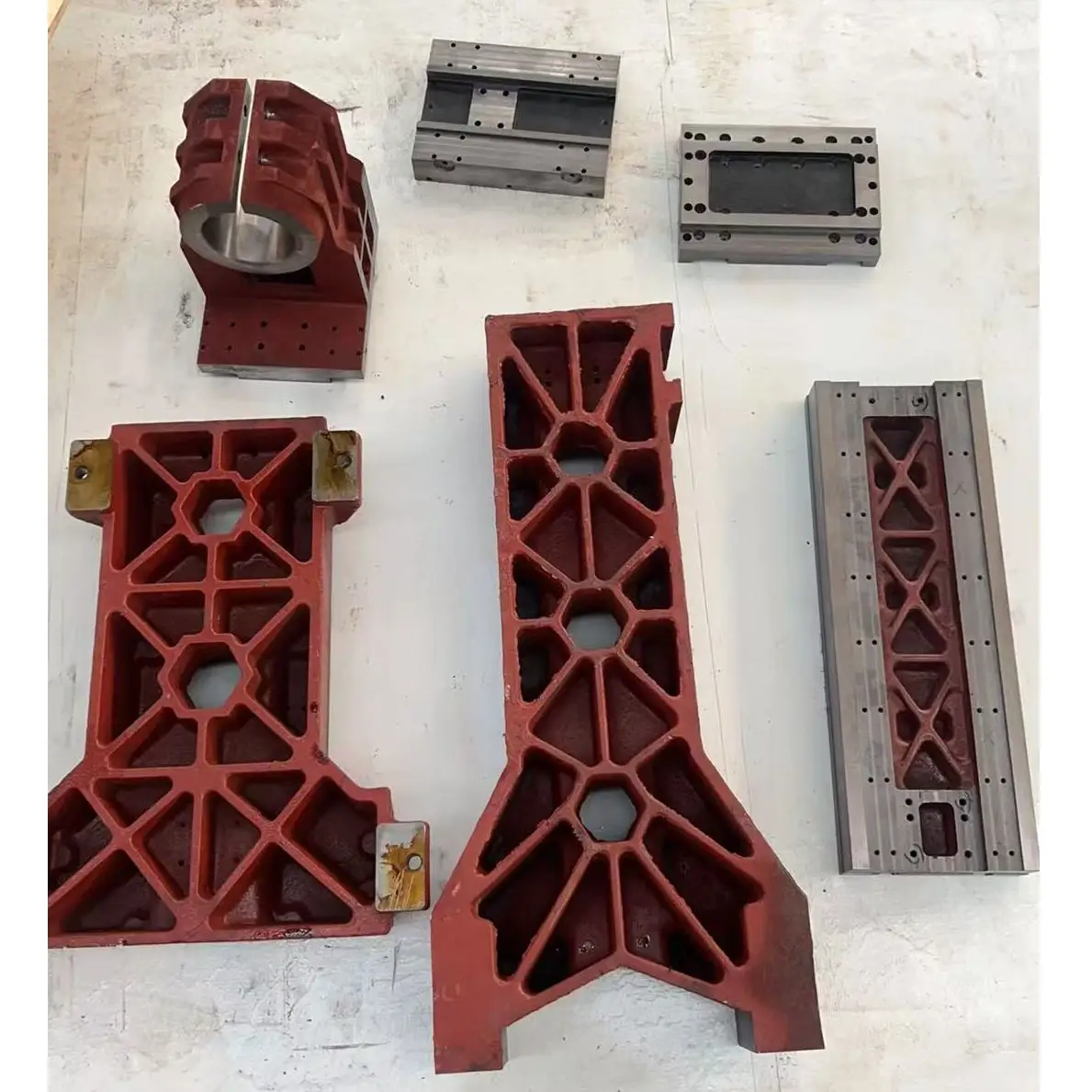

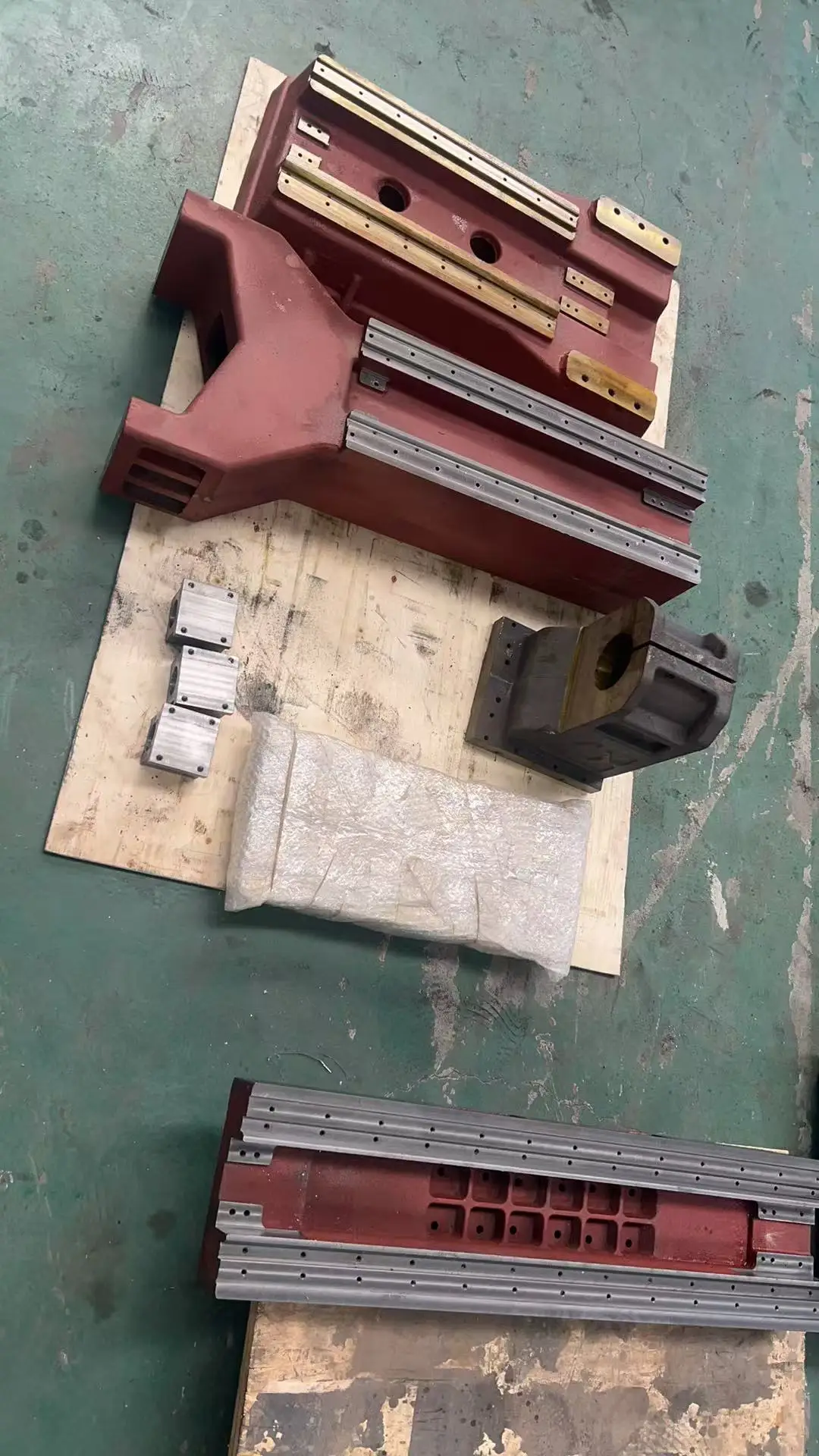

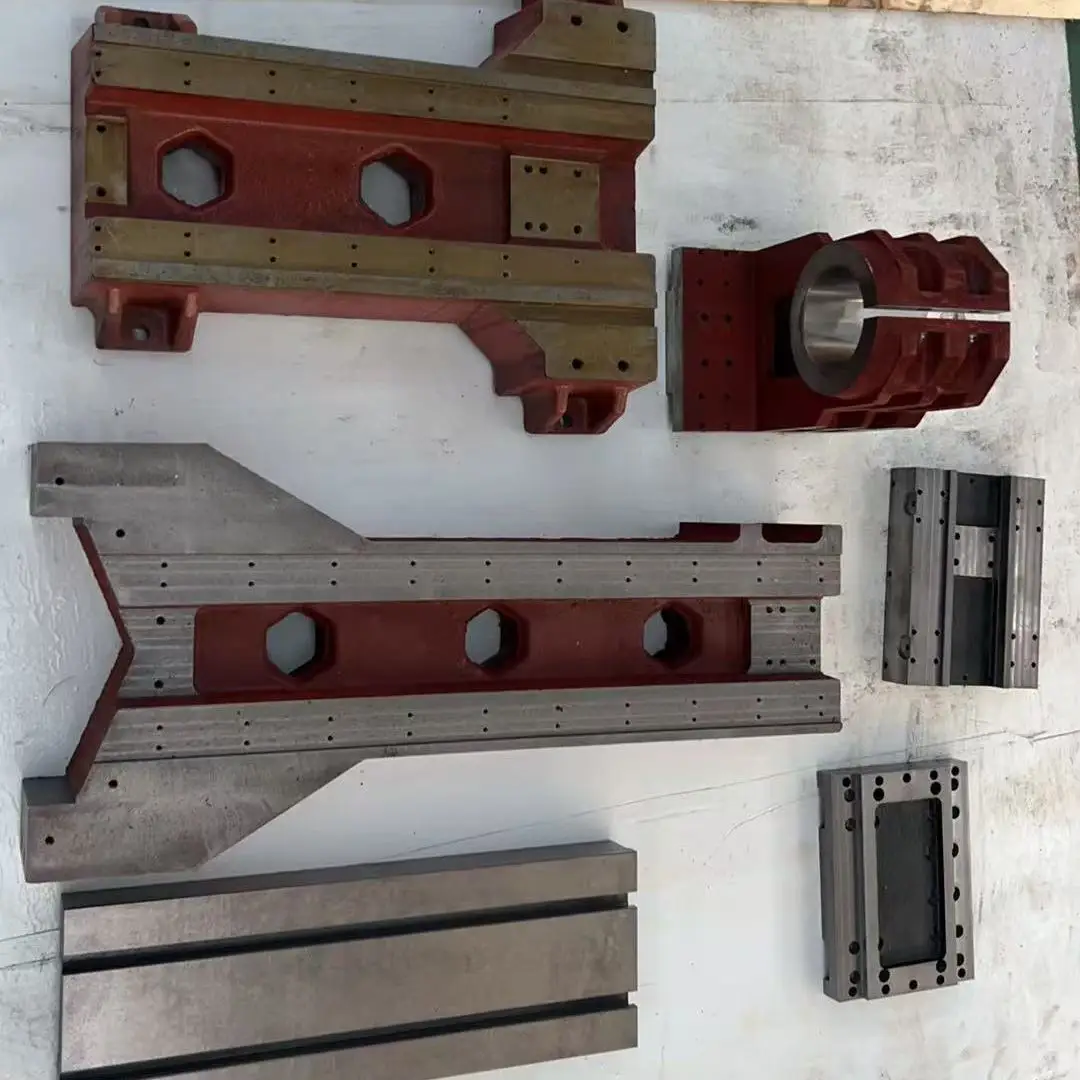

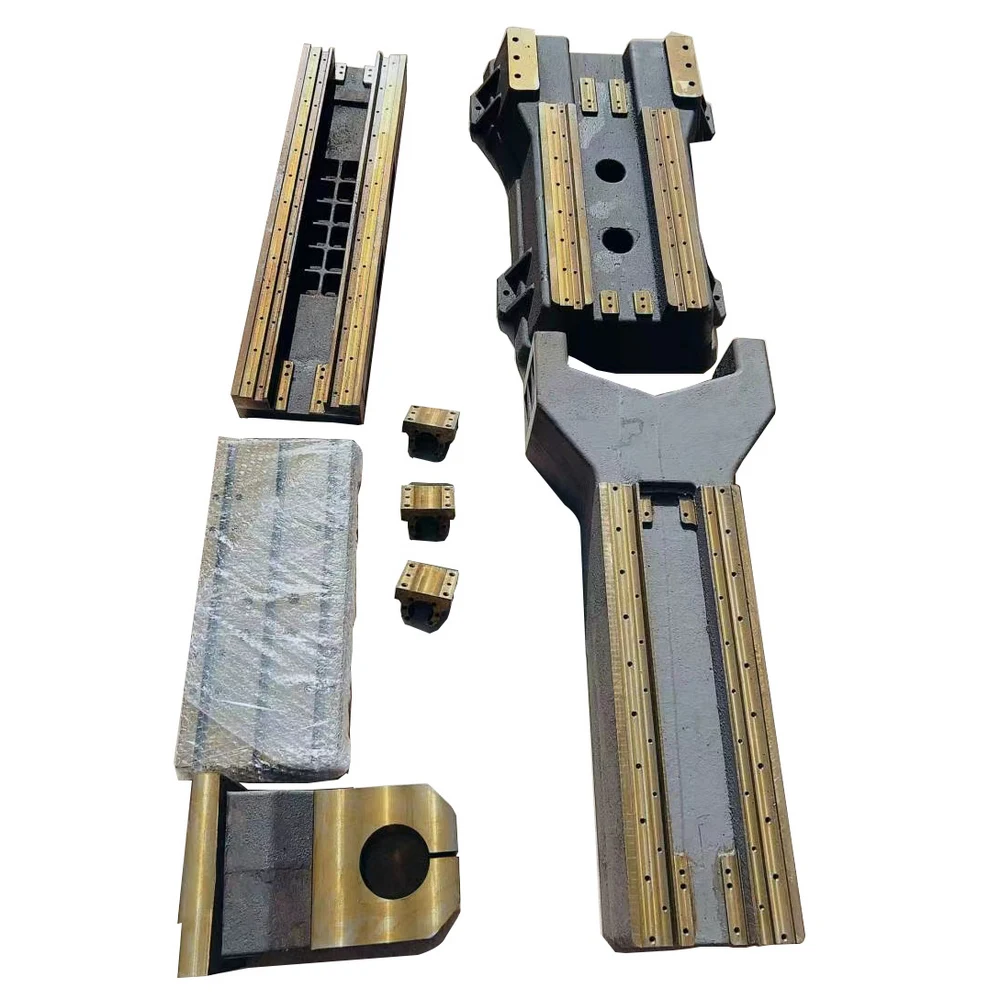

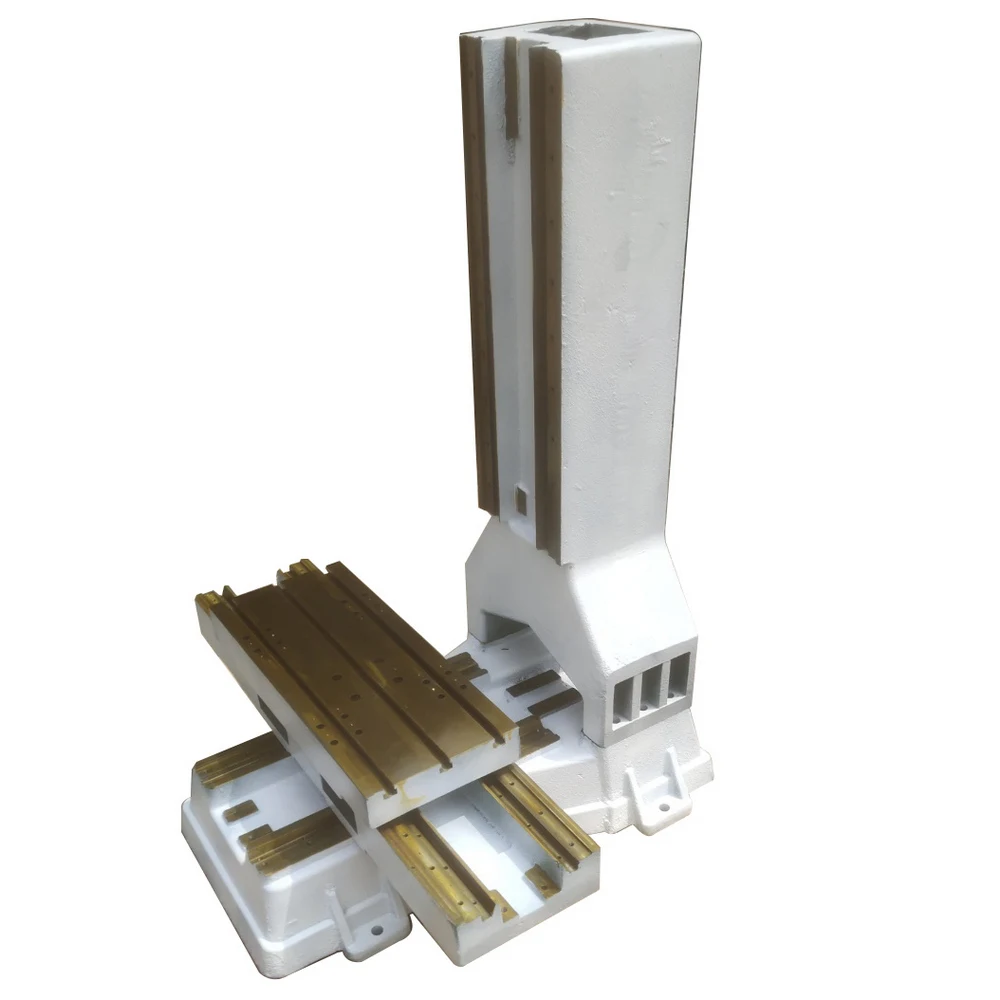

irInclude these parts:

Base X 1 pc

Single Column X 1pc

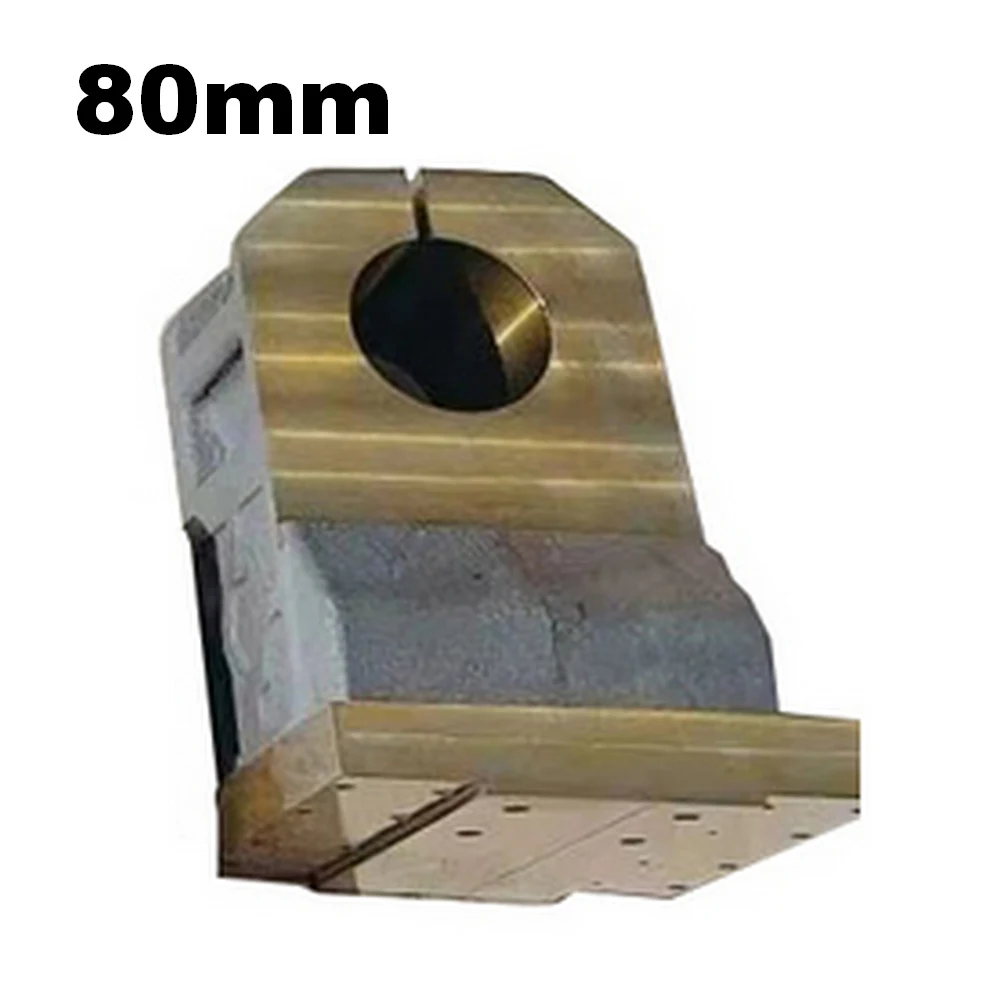

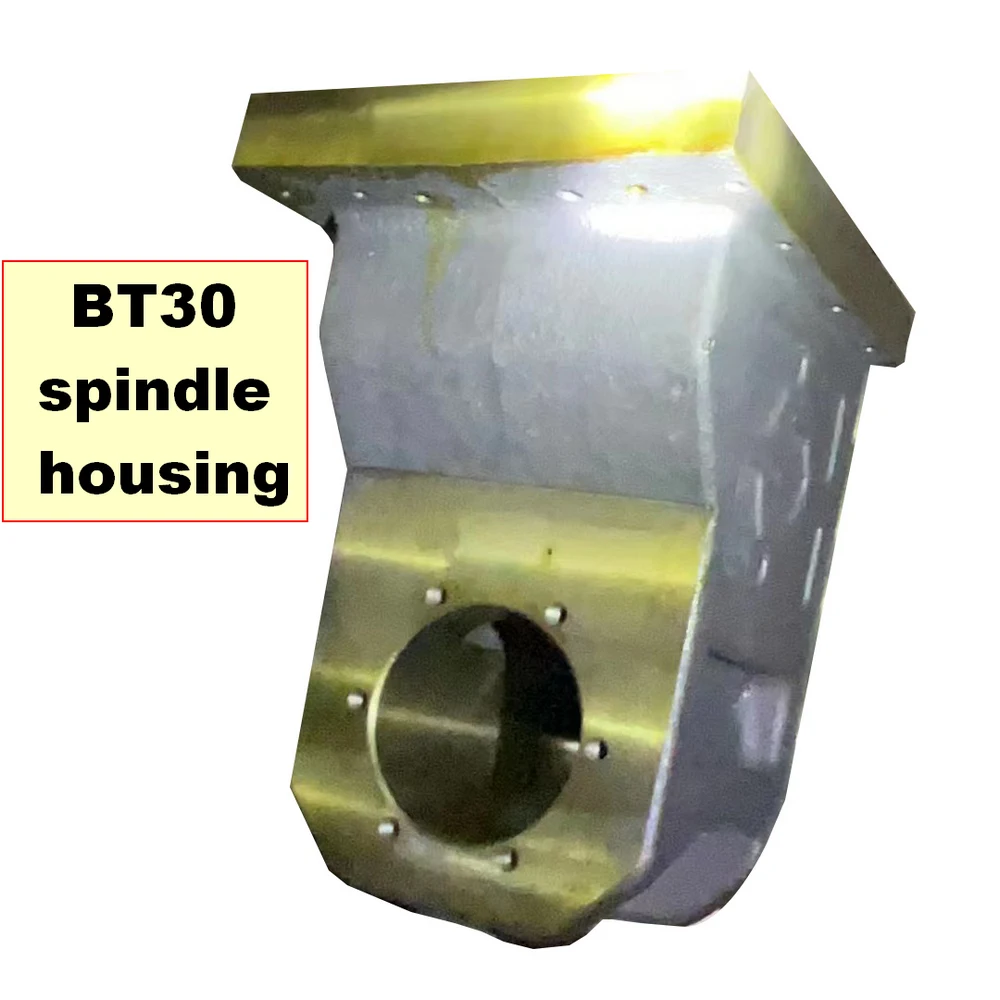

Spindle Housing X 1pc  (80mm or 90mm for Bt30 spindle,please tell me )

X Y axis slide plate X 1pc

Z axis slide plate X 1pc

Worktable X 1pc


2515 use hgh15mm linear railway, 1605 ball screw rod.


4020 xy axis use hgh25mm linear railway, Z axis use HGH20mm linear railway. 2005 ball screw rod.



machined cnc machine bed,finished machine tool bed,cnc lathe bed frame,machining center bed part,cast iron machine base,machined machine tool casting
