Cast Iron Frame Parts for 3 Axis Engraving machine DIY

Description:

Cast Iron Frame Parts for 3 Axis Engraving machine DIY OEM Machined Cast Iron CNC Machine Bed,Finished Machine Tool Base With Machined Guide Rail Surface

CONTACT NOW down load to pdf

product details

Specifications

Hign-concerned Chemical
None
Certification
None
Origin
Mainland China
Type
Vertical
Condition
New
Brand Name
fullmida
Model Number
4030
CNC or Not
CNC

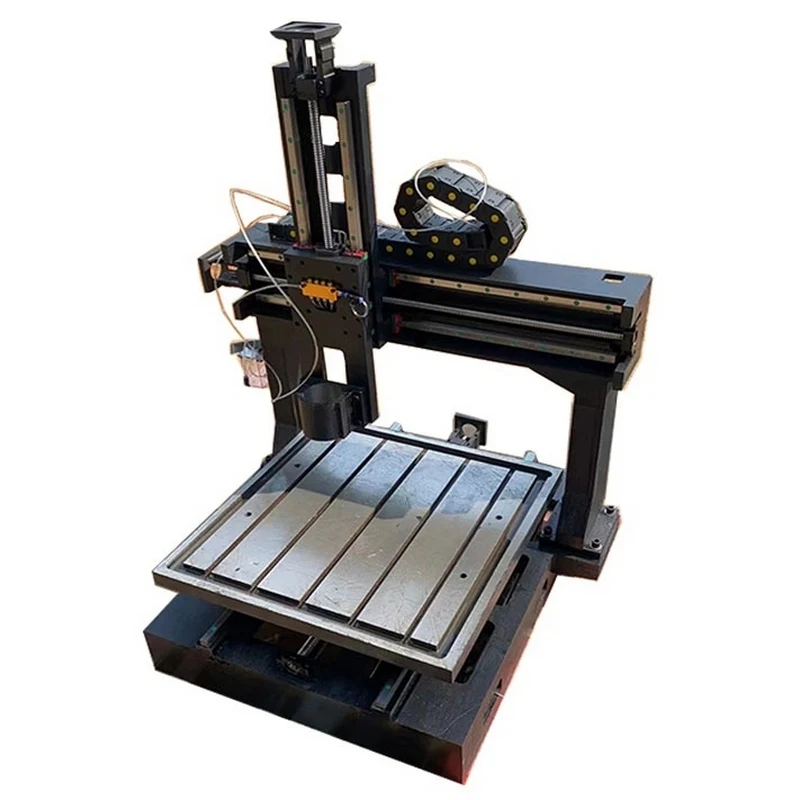

4030 Small Cnc Milling Machine Gantry Tool Metal Jewelry Engraving Cast Iron Frame 3 Axis Wood Router DIY Kits Hobbies

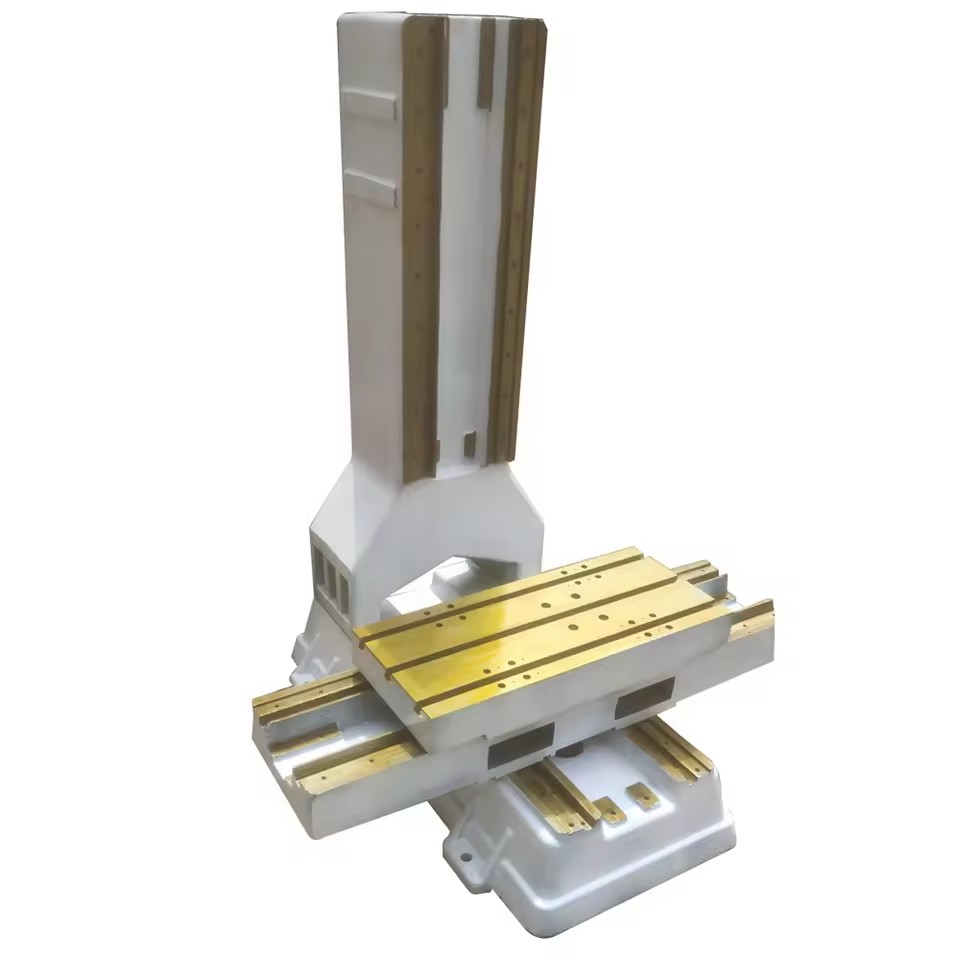

OEM Machined Cast Iron CNC Machine Bed,Finished Machine Tool Base With Machined Guide Rail Surface

✅ Precision Machined Cast Iron Machine Bed

HT250 / HT300 gray iron casting base, fully machined guide‑way surfaces, critical mounting faces finished to drawing tolerance, ready for assemblyAliExpress.

✅ Excellent Vibration Damping & Rigidity

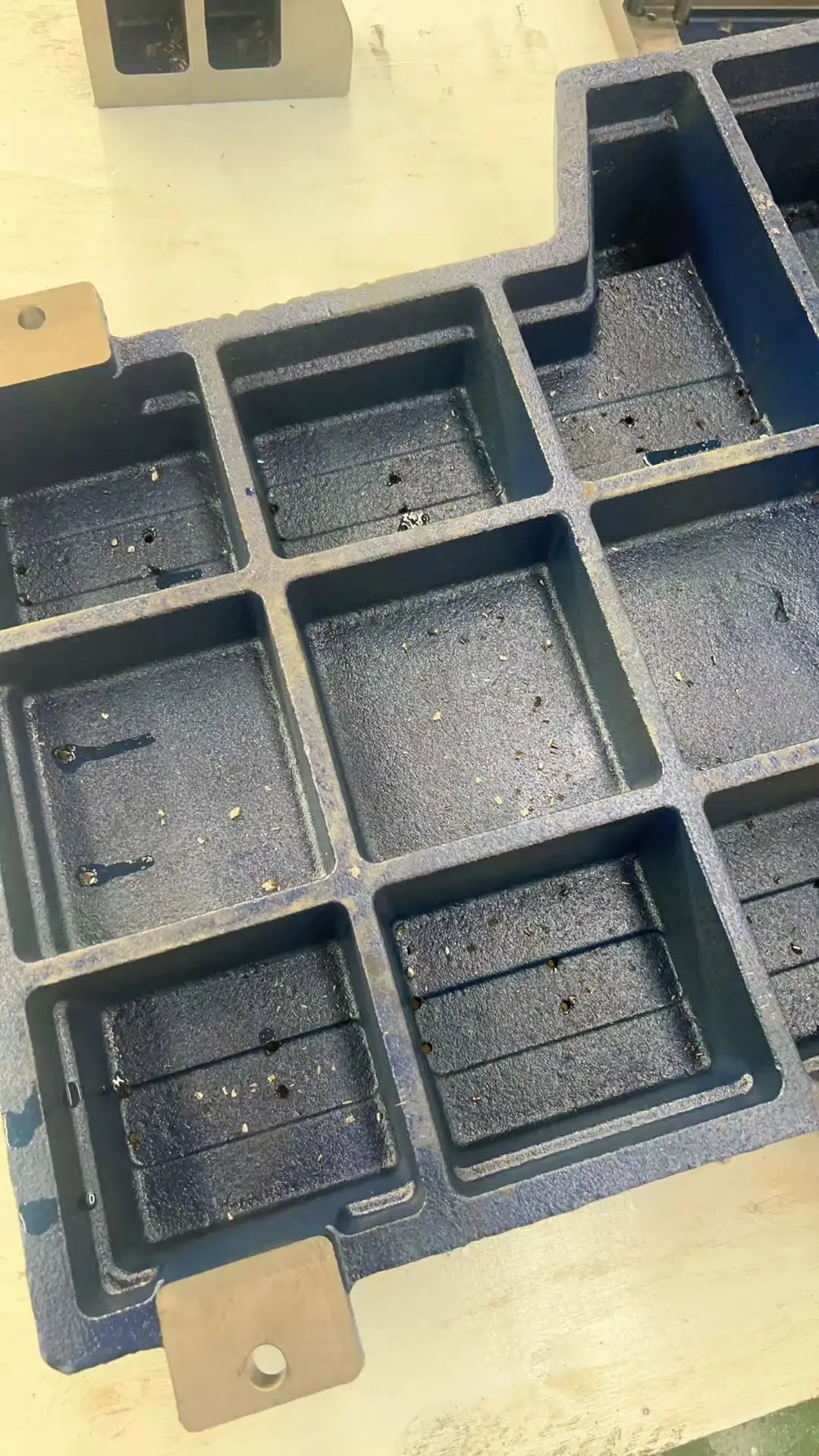

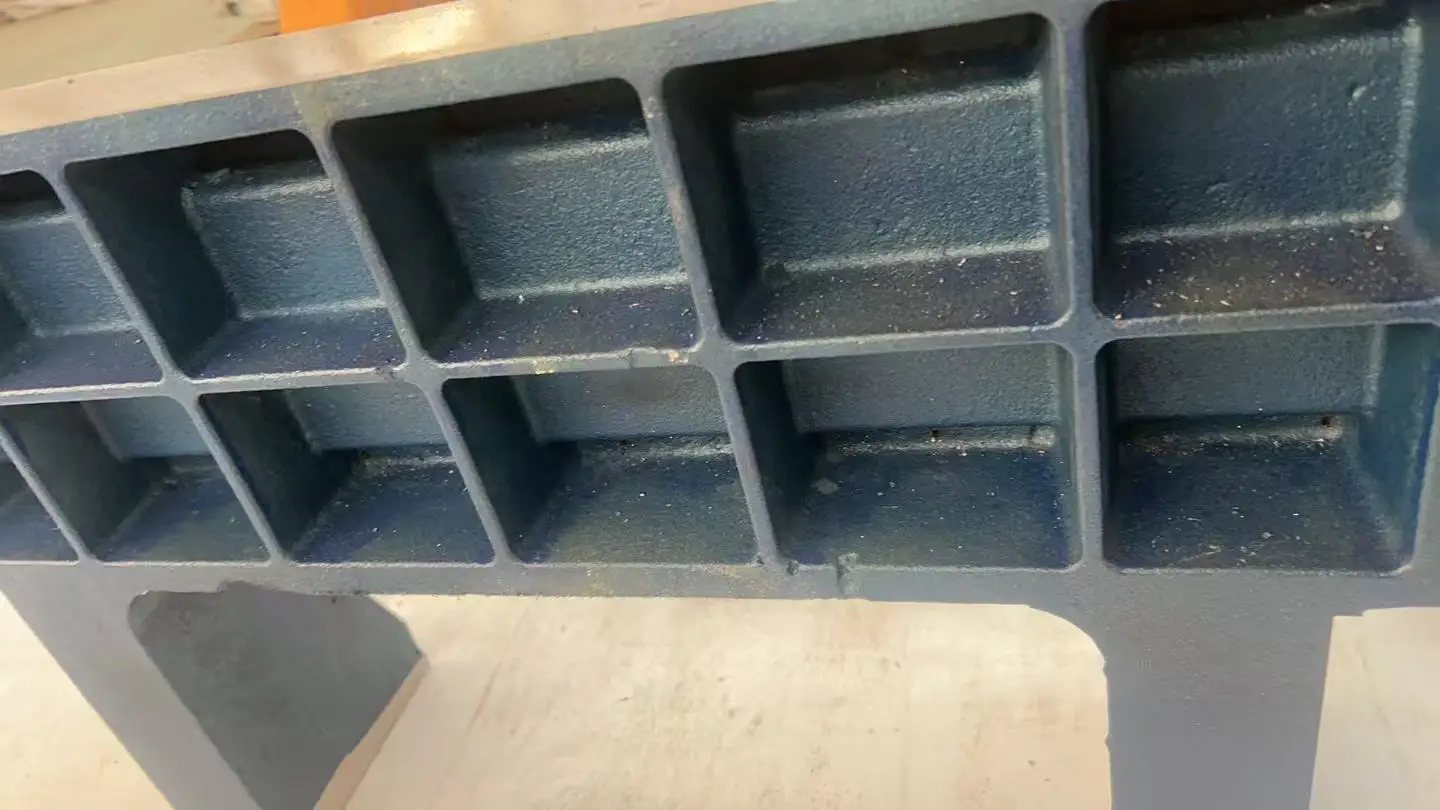

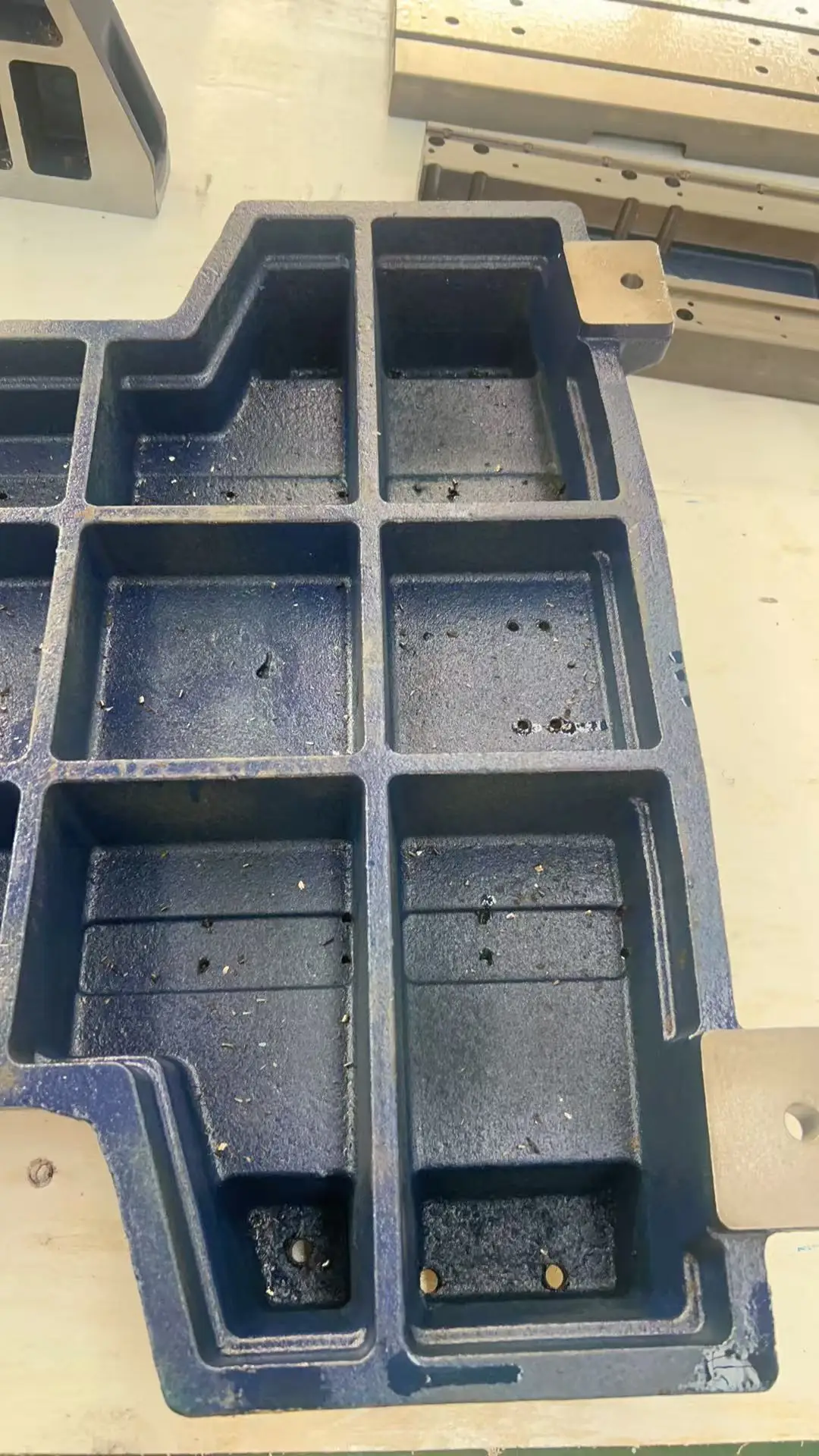

High‑strength cast iron structure with optimized rib design, absorb cutting vibration, guarantee long‑term machine running accuracy for CNC lathe & machining center.

✅ Full‑Process Service Available

From resin‑sand casting → stress relief → rough & finish machining. Custom holes, T‑slots, mounting interfaces as per your technical drawings.

✅ Rigorous Dimensional QC

Key surfaces measured by CMM coordinate measuring machine. Tolerance controlled for flatness & parallelism. Supply inspection documents for key dimensions.

✅ OEM & Bulk Production Support

Direct factory output. Custom size & weight. Suitable for new machine assembling project. Fast lead time for serial orders.

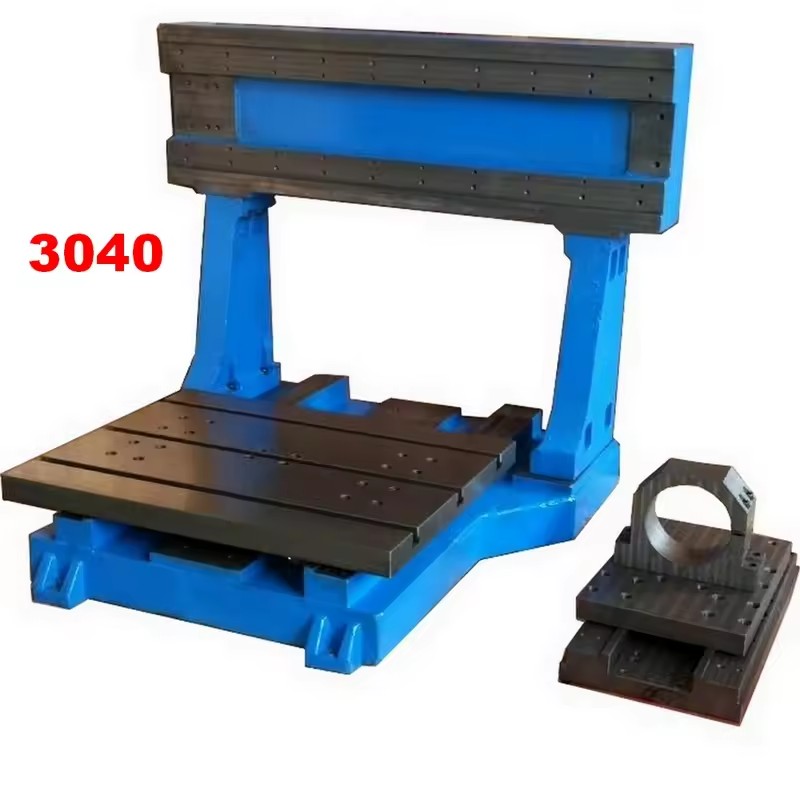

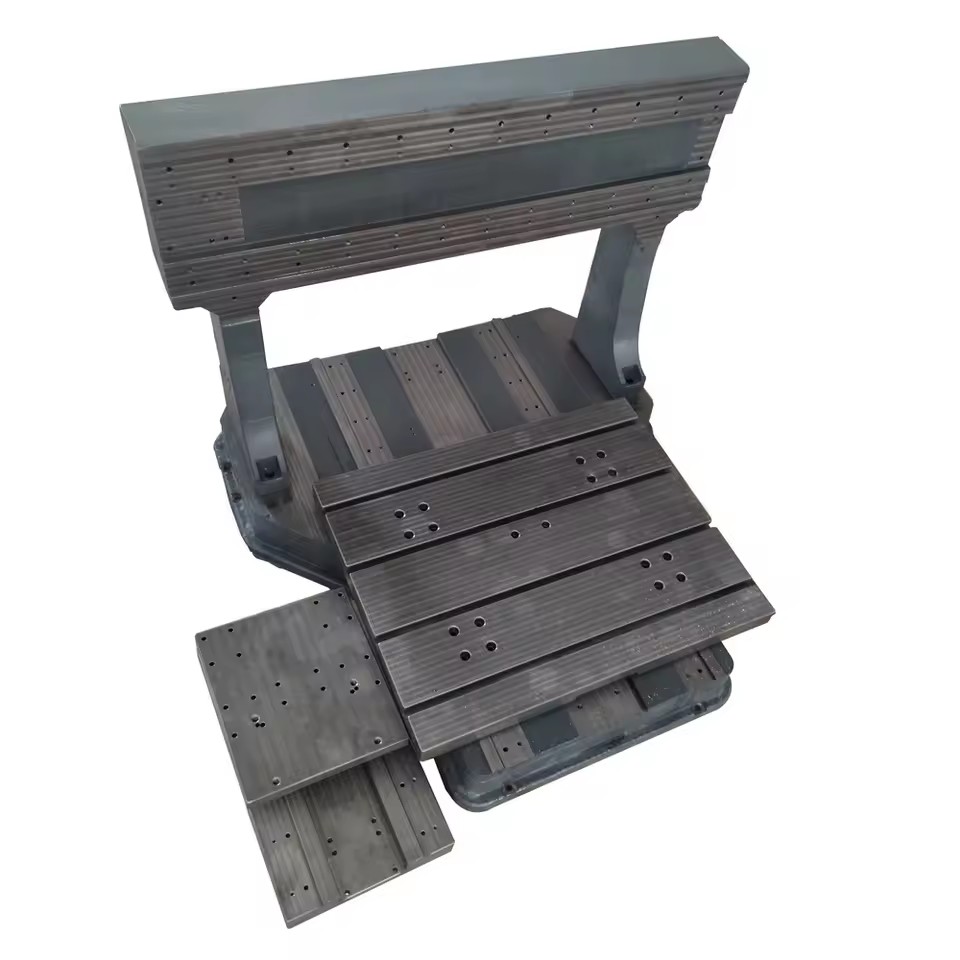

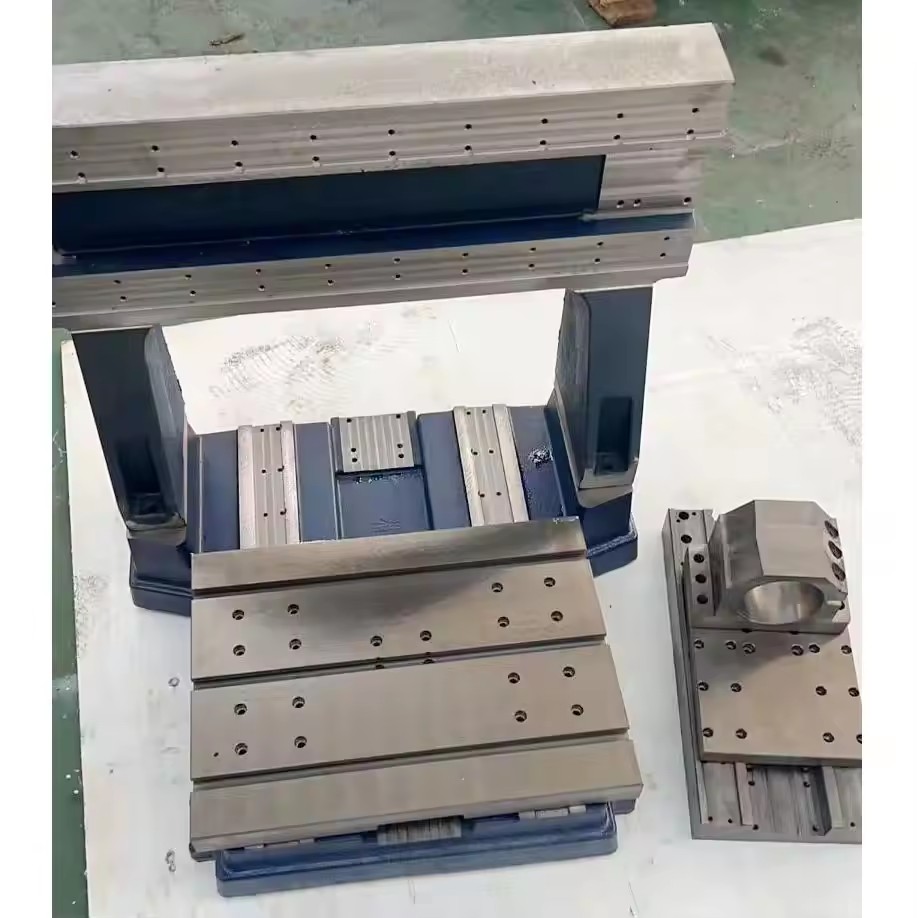

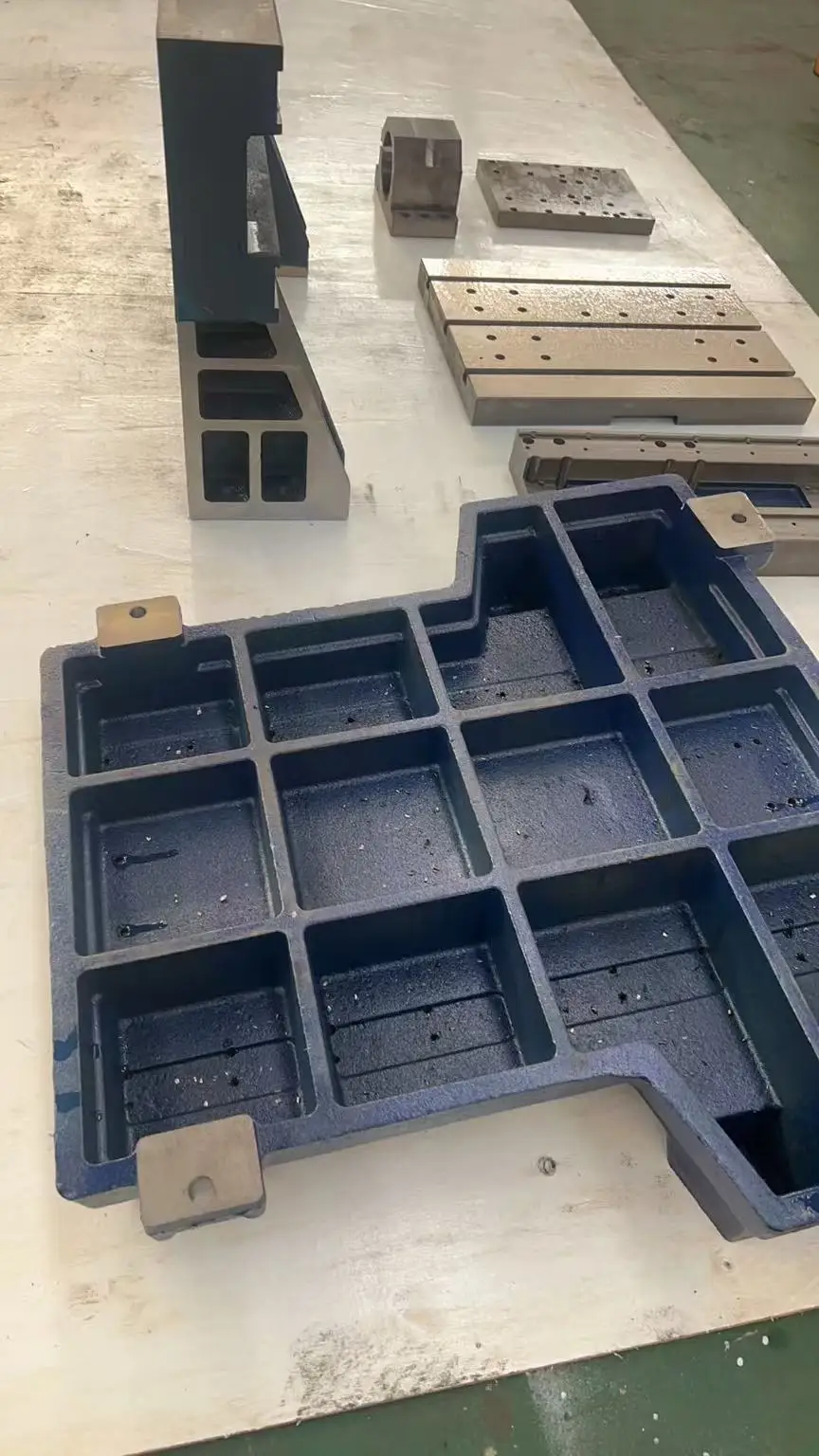

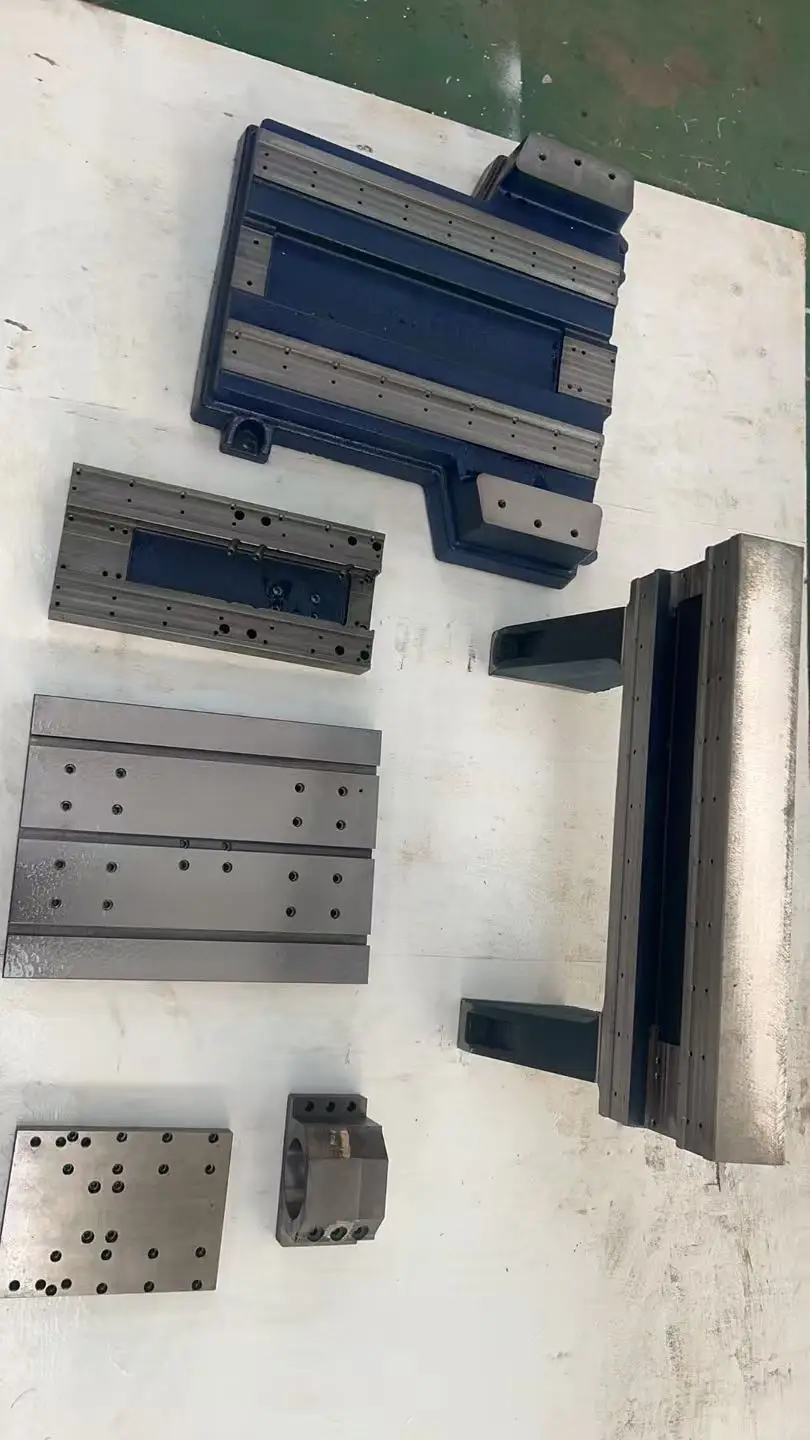

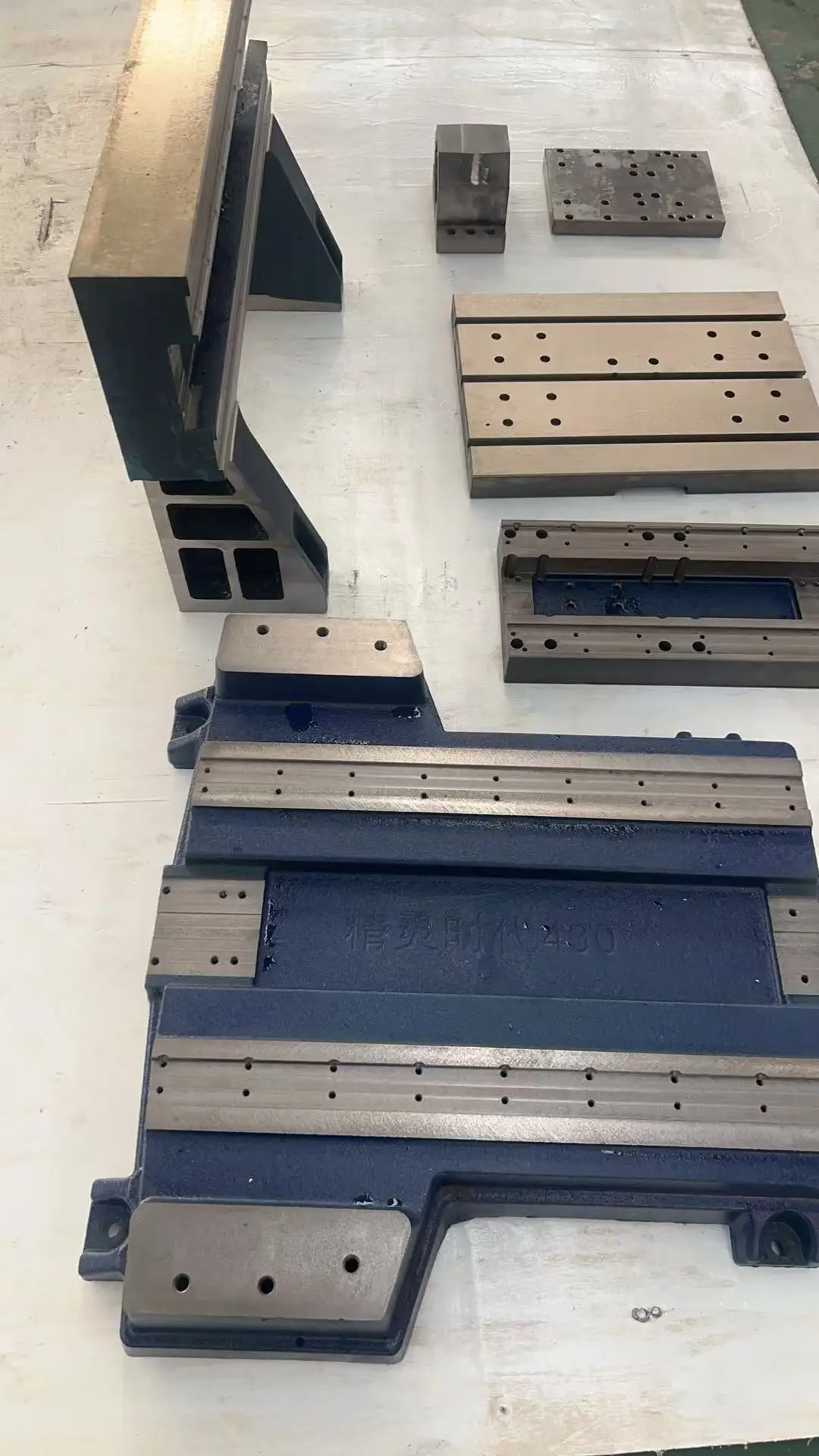

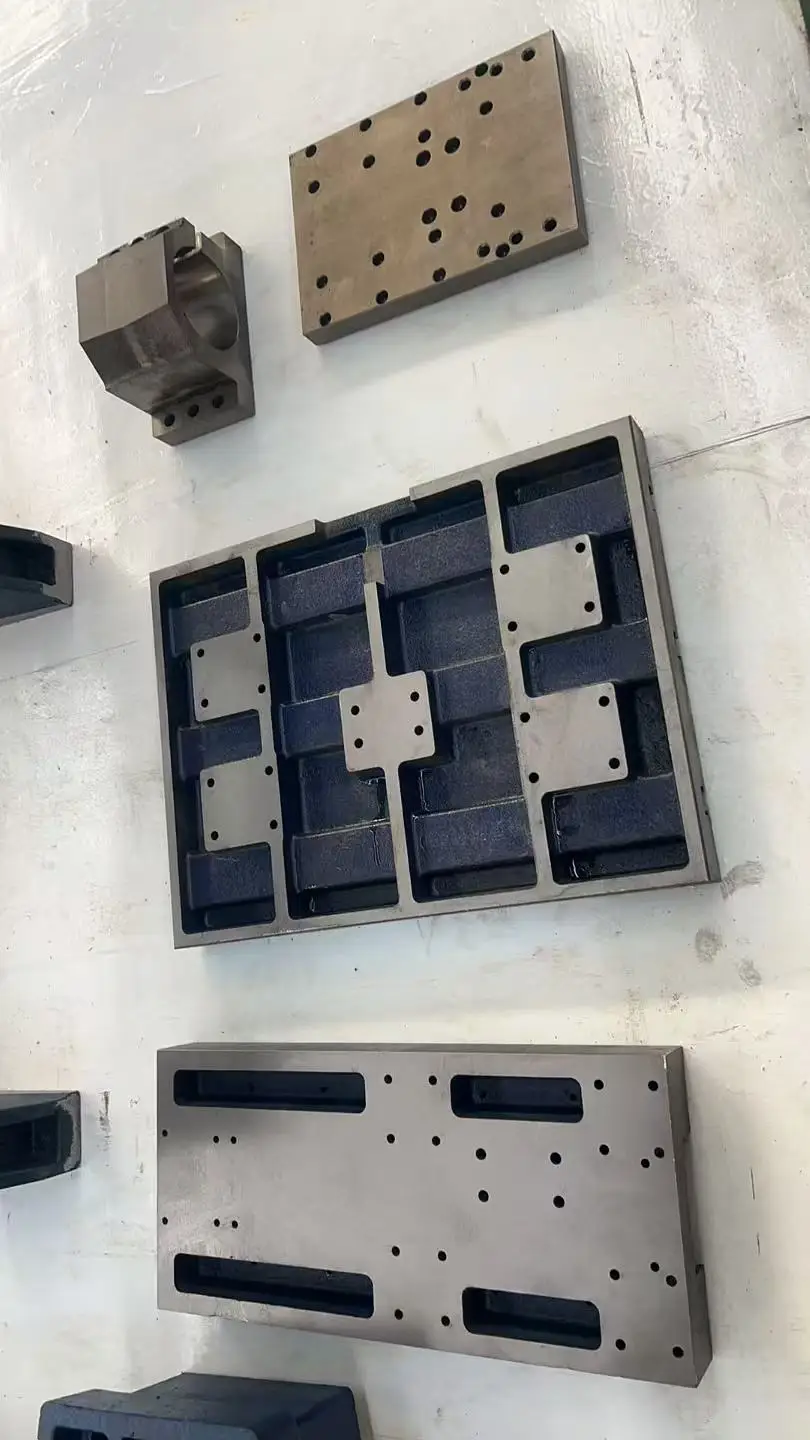

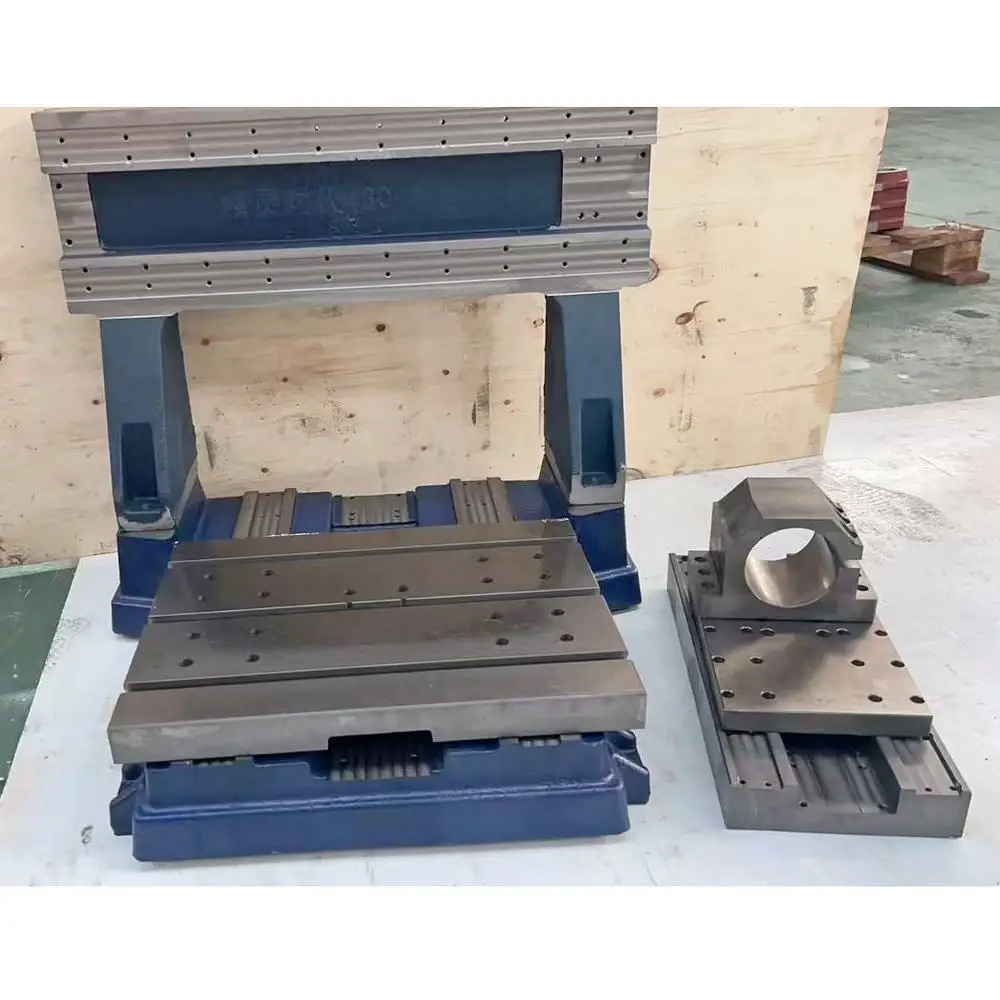

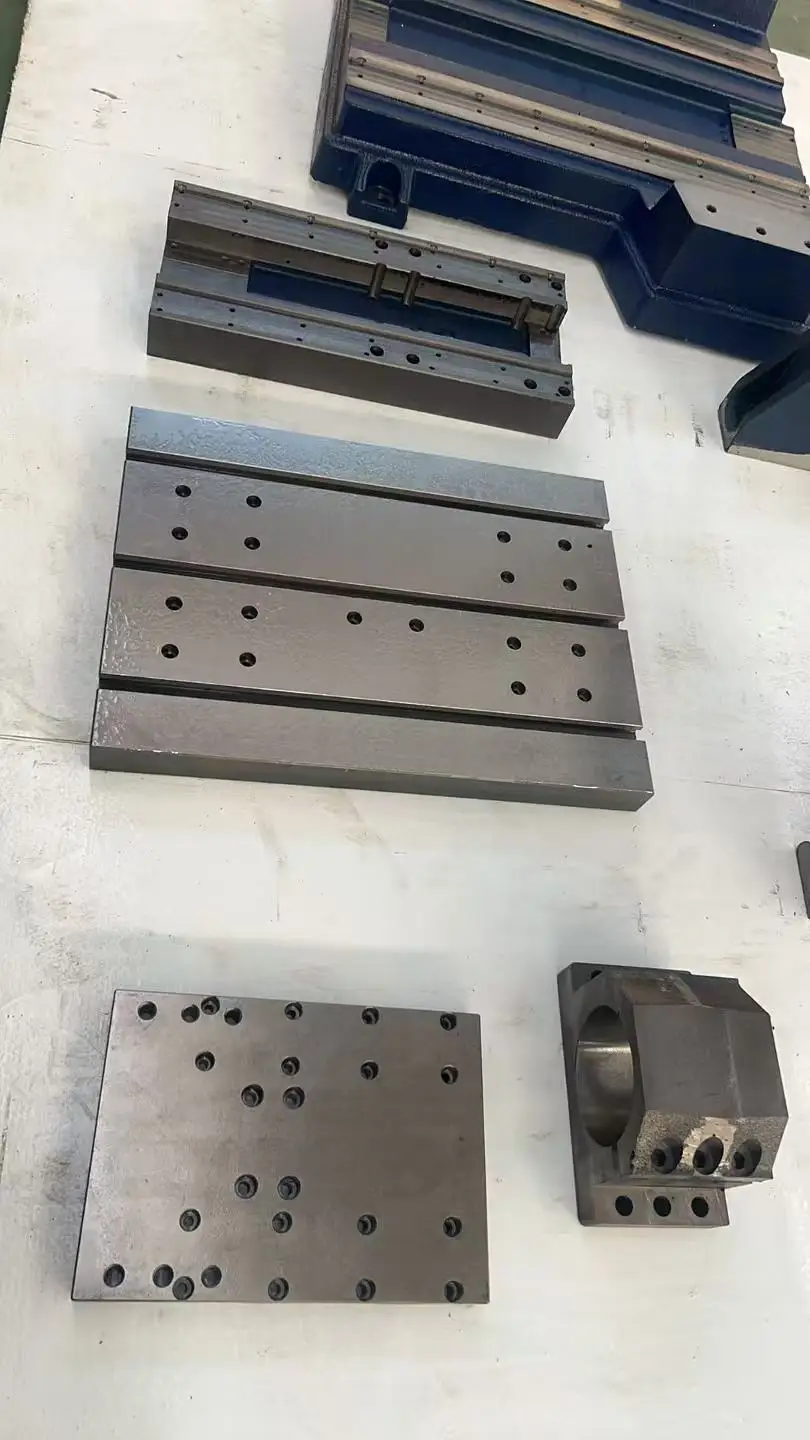

Include:

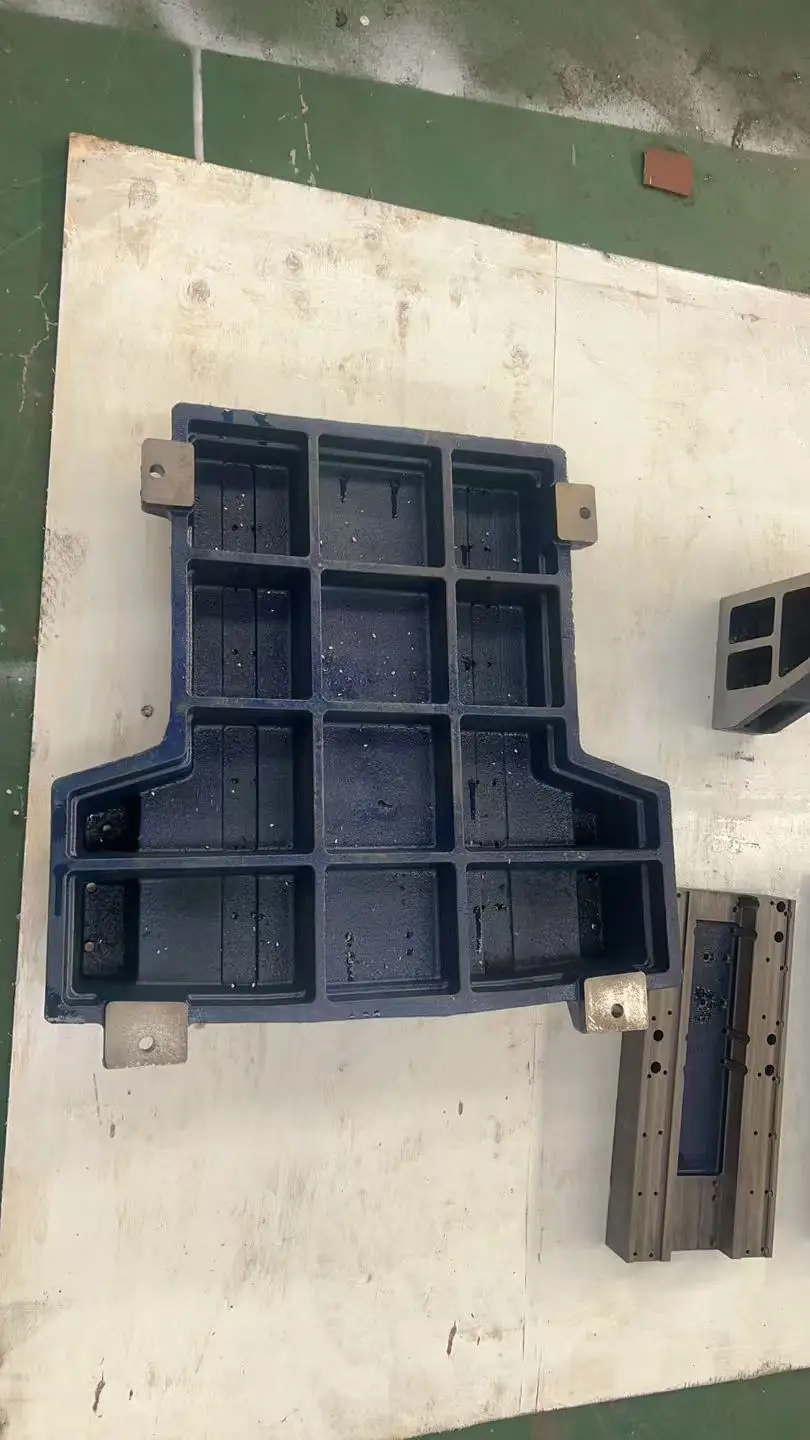

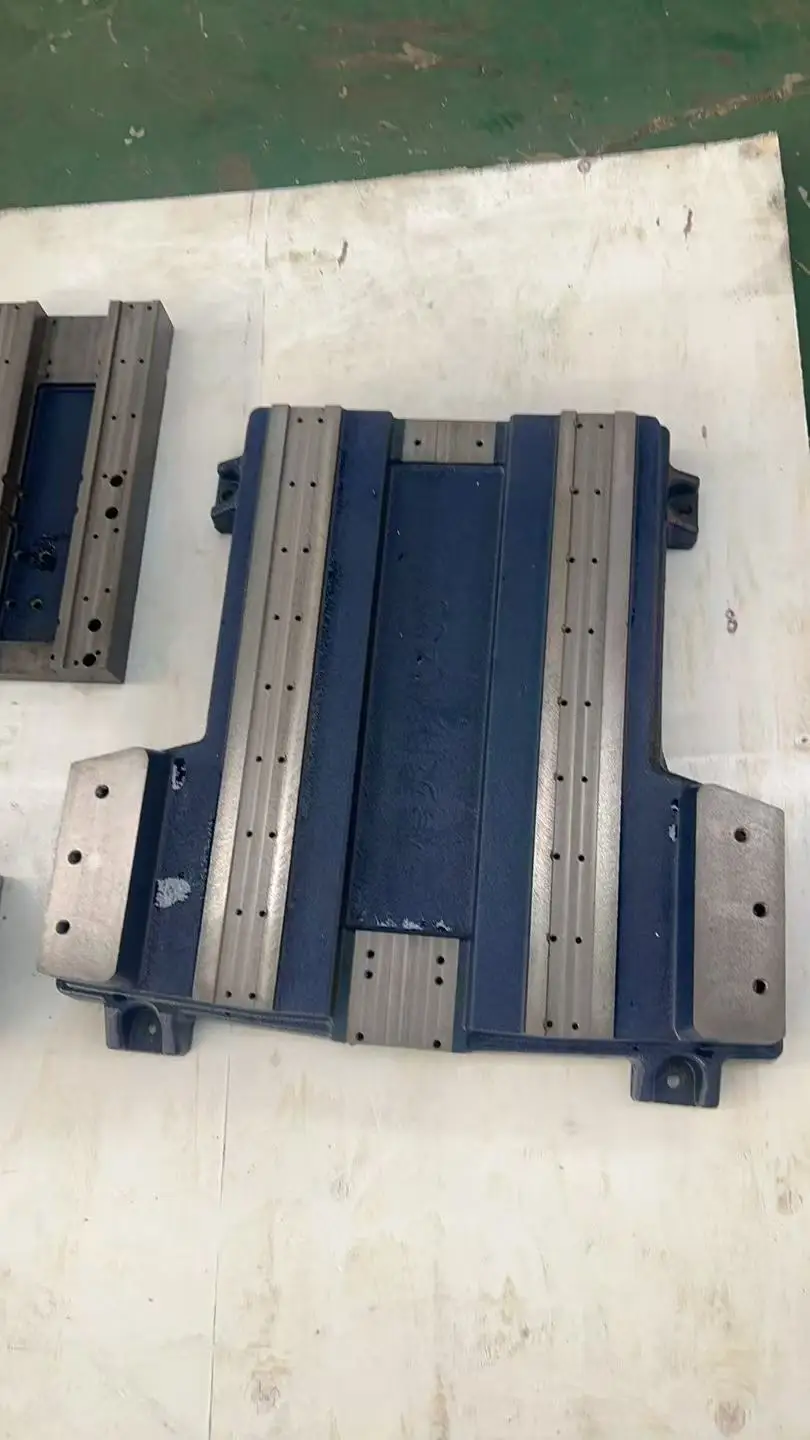

base x1pc,

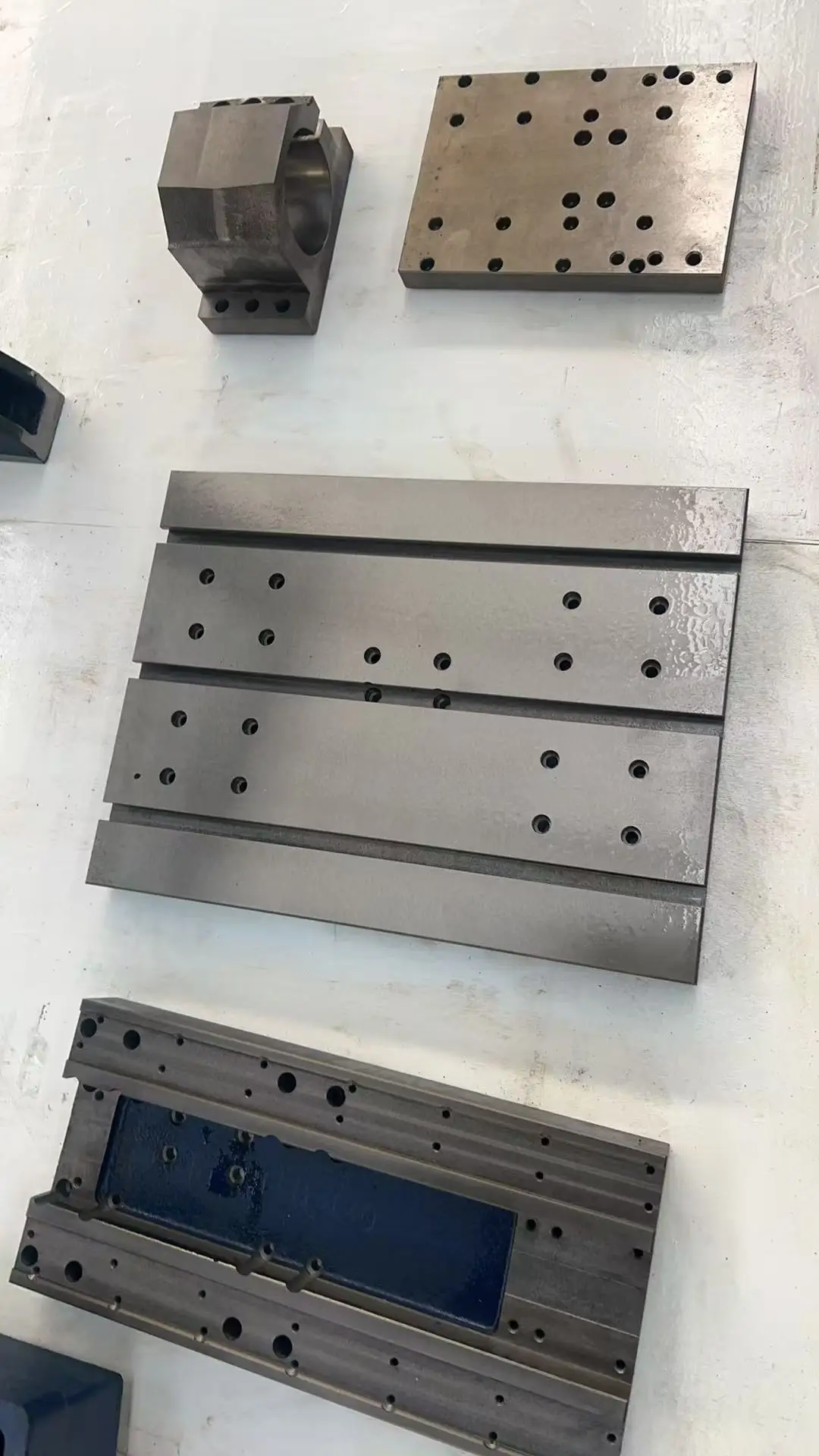

worktable x1pc, 300X400mm

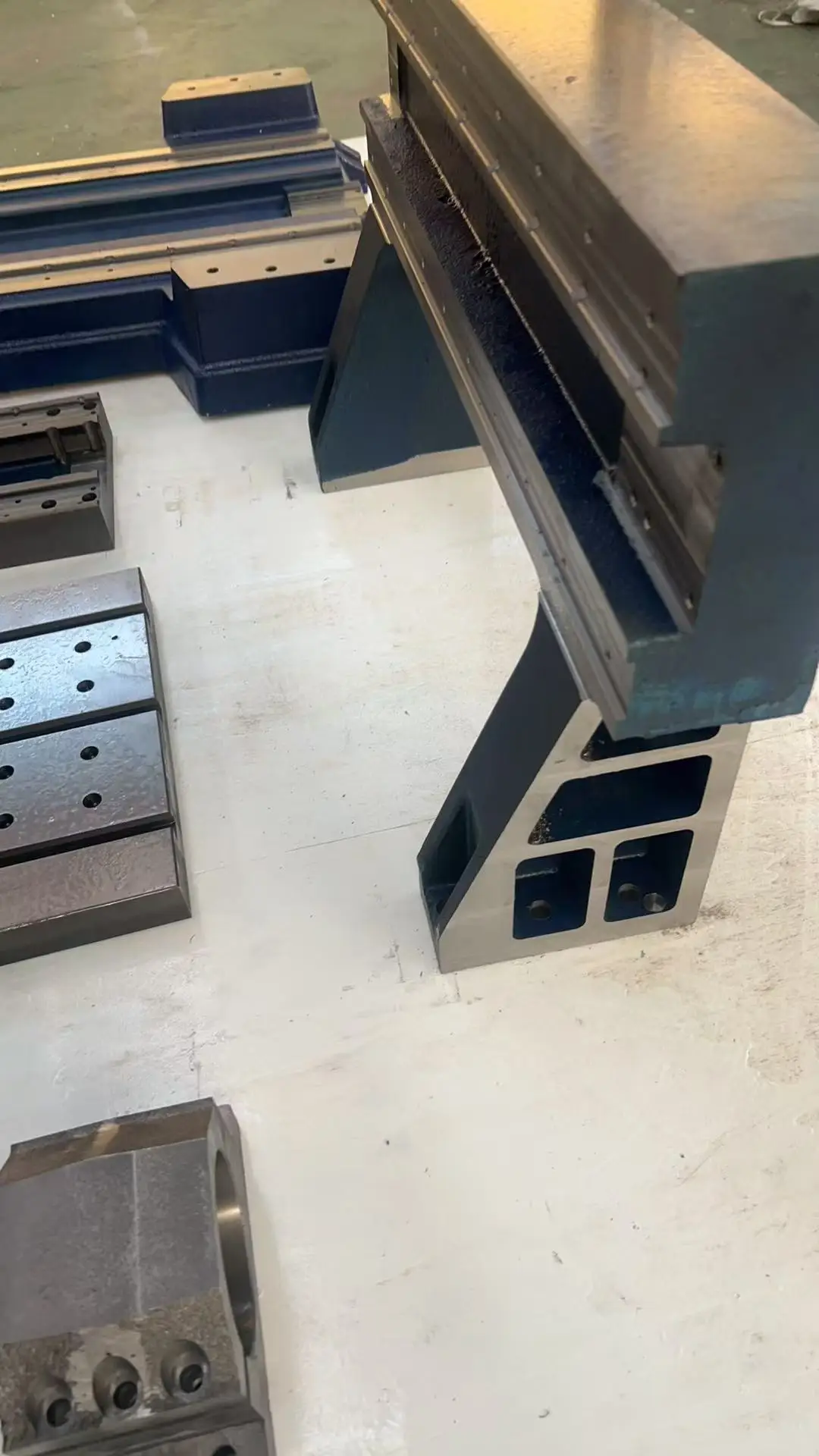

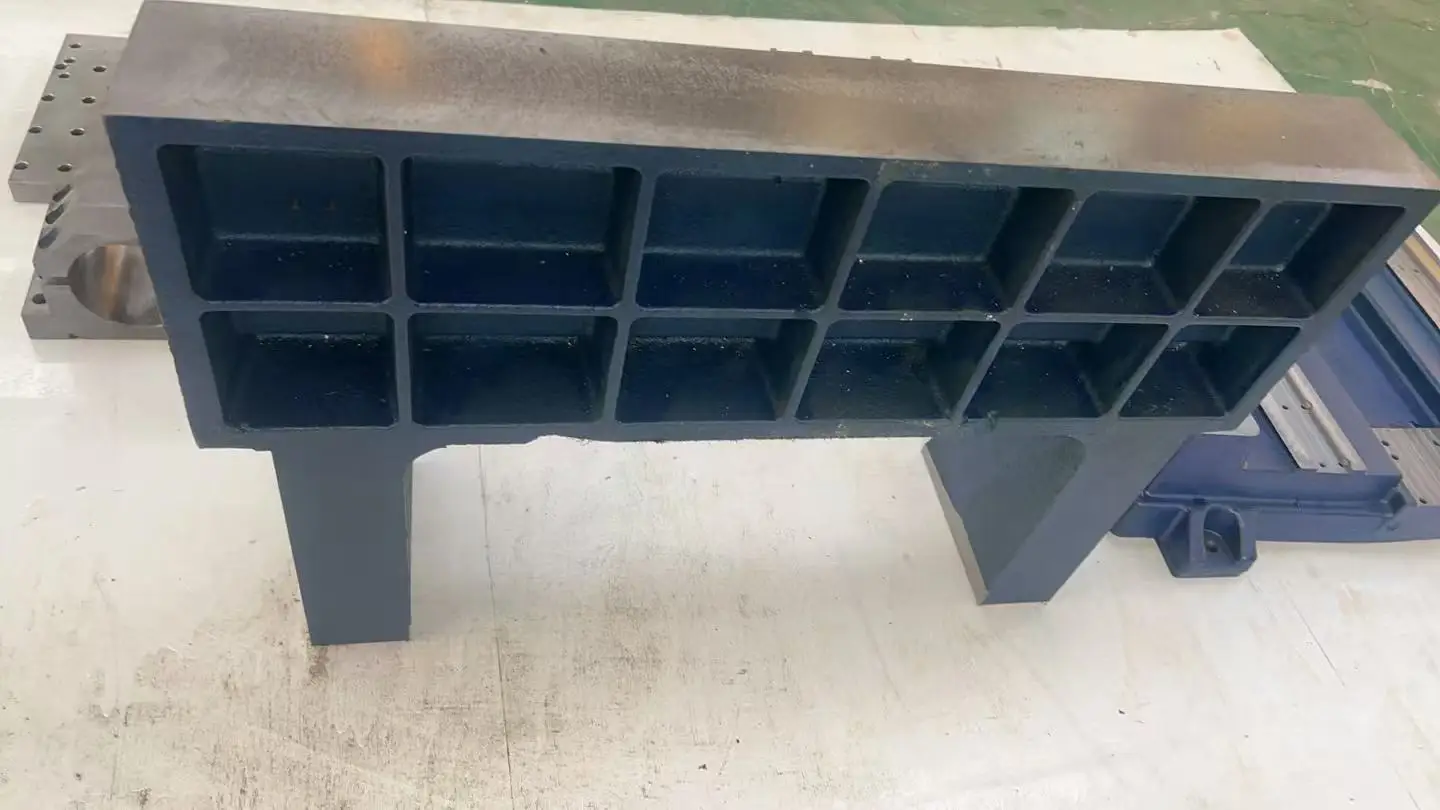

column(gantry version x2pcs ,other X1pc) ,

beam x1pc,

Z axis plate X 1pc

Not include spindle and spindle housing ,it is an optional parts.

NET weight 208 kg.

X 400mm Y 300mm Z 150mm Feight height is 200mm

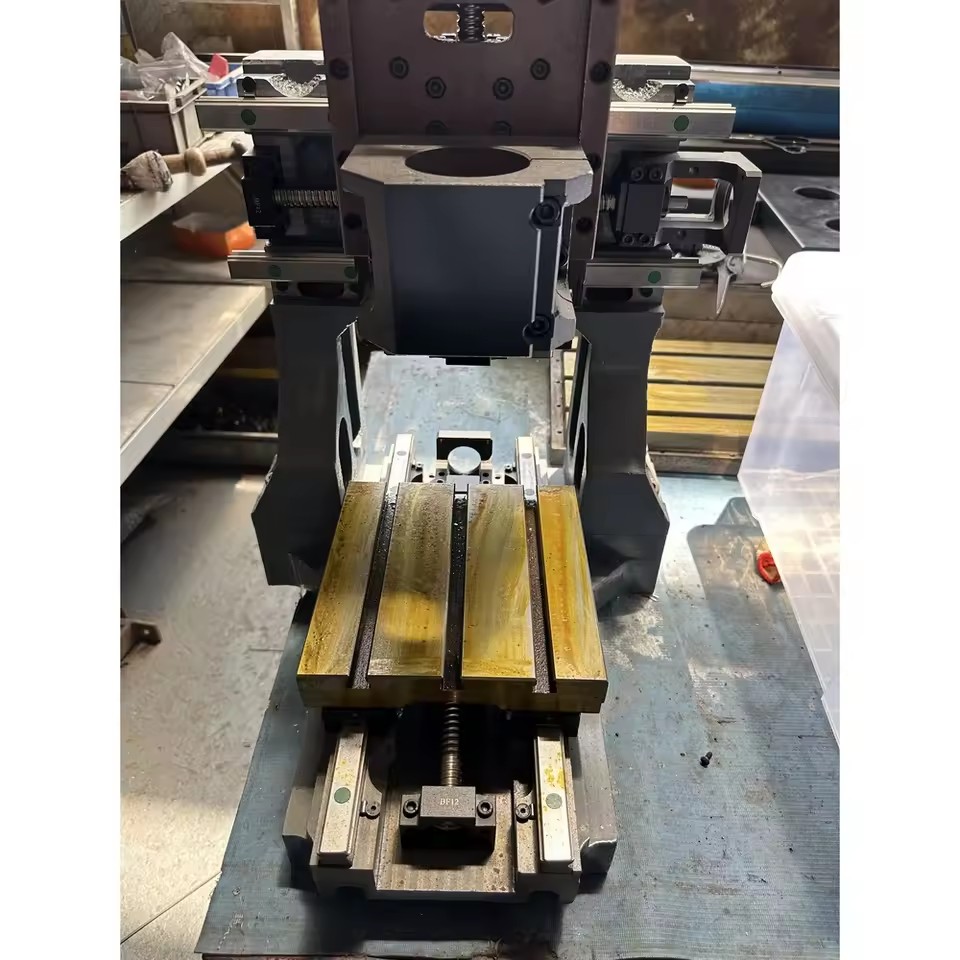

X Y AXIS use HGH25CA linear railway use 20mm ball screw

Z Axis use HGH20CA linear railway. use 20mm ball screw

the mounting hole distance of ballscrew block is 15*54mm 45*58MM.

worktable is 300*400mm

Worktable height 80.5MM(screw center height x2).

the packing size of the wooden case is 76*78* 76CM.

we have other model, if you want to buy,please contact us!

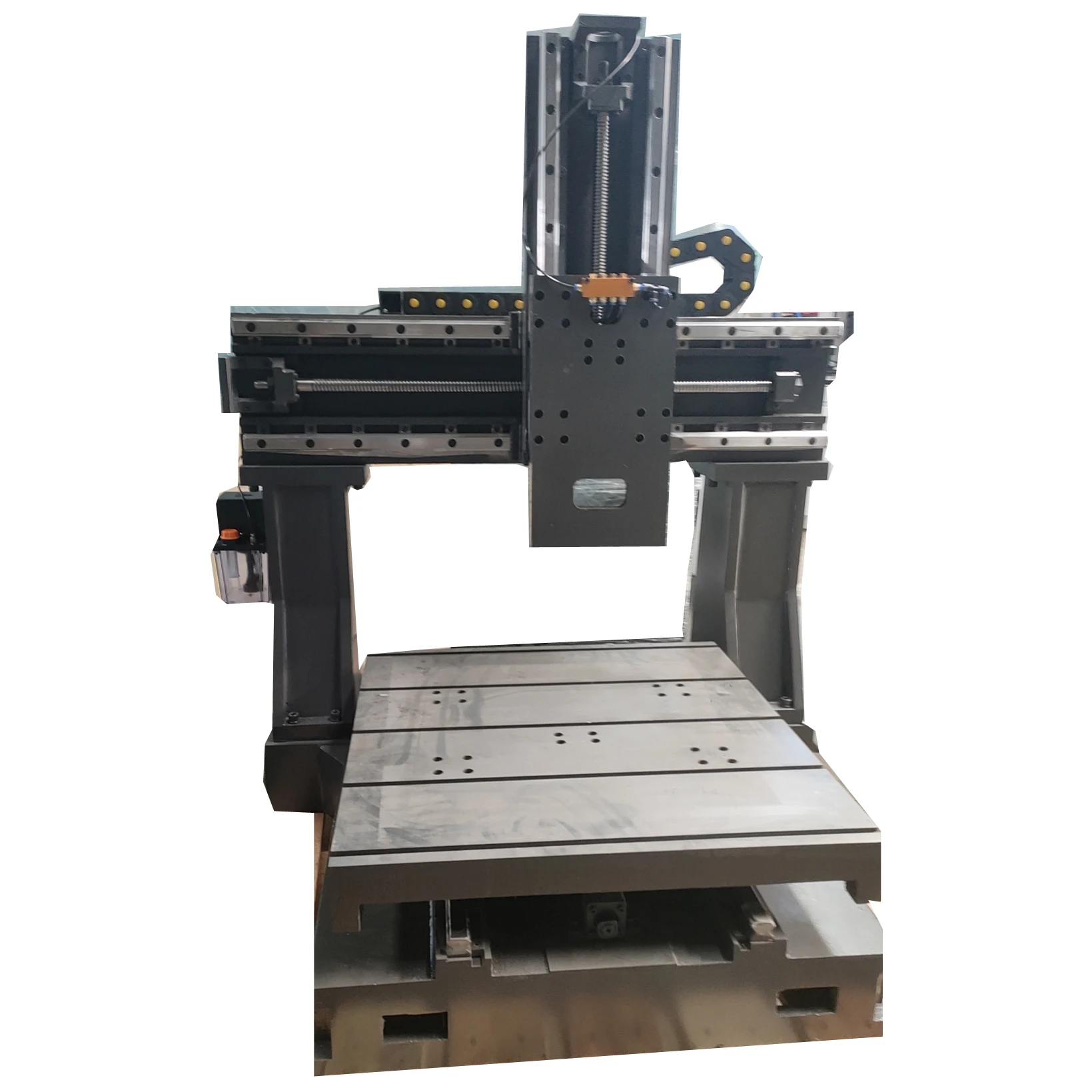

THIS IS A HEAVY 6060 FRAME MACHINE

****************************************************************
