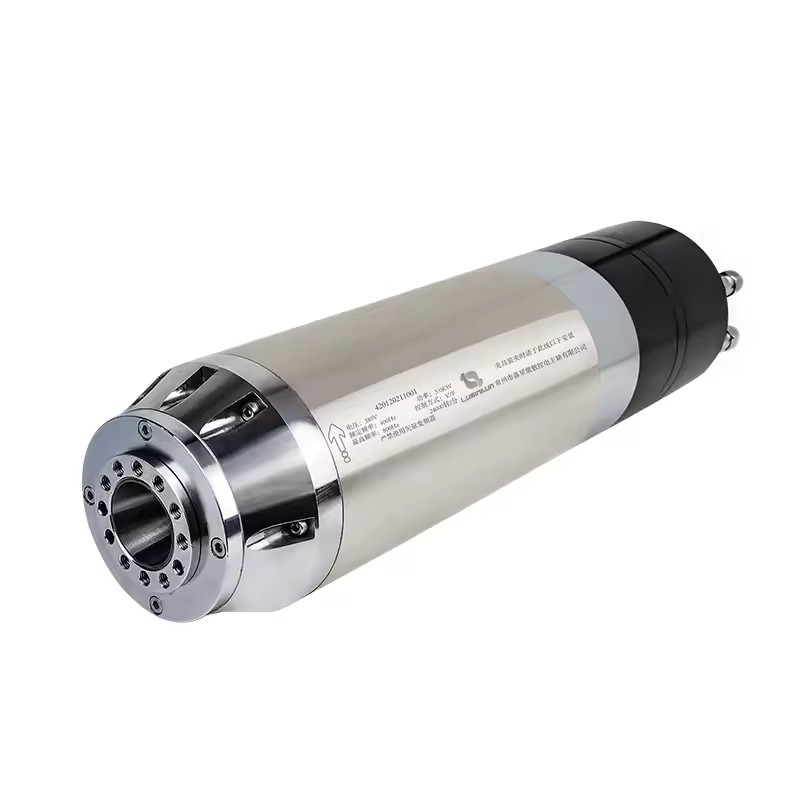

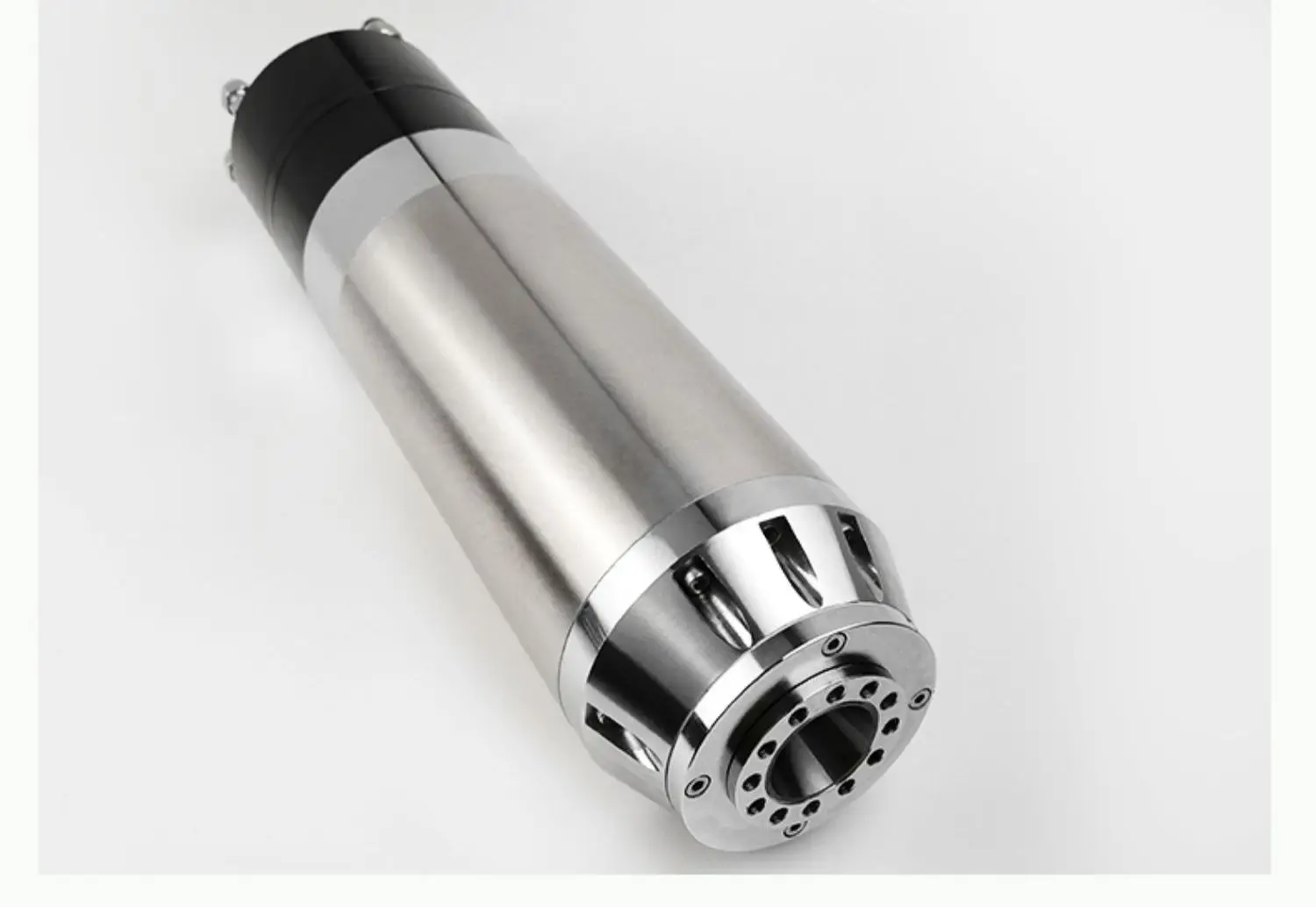

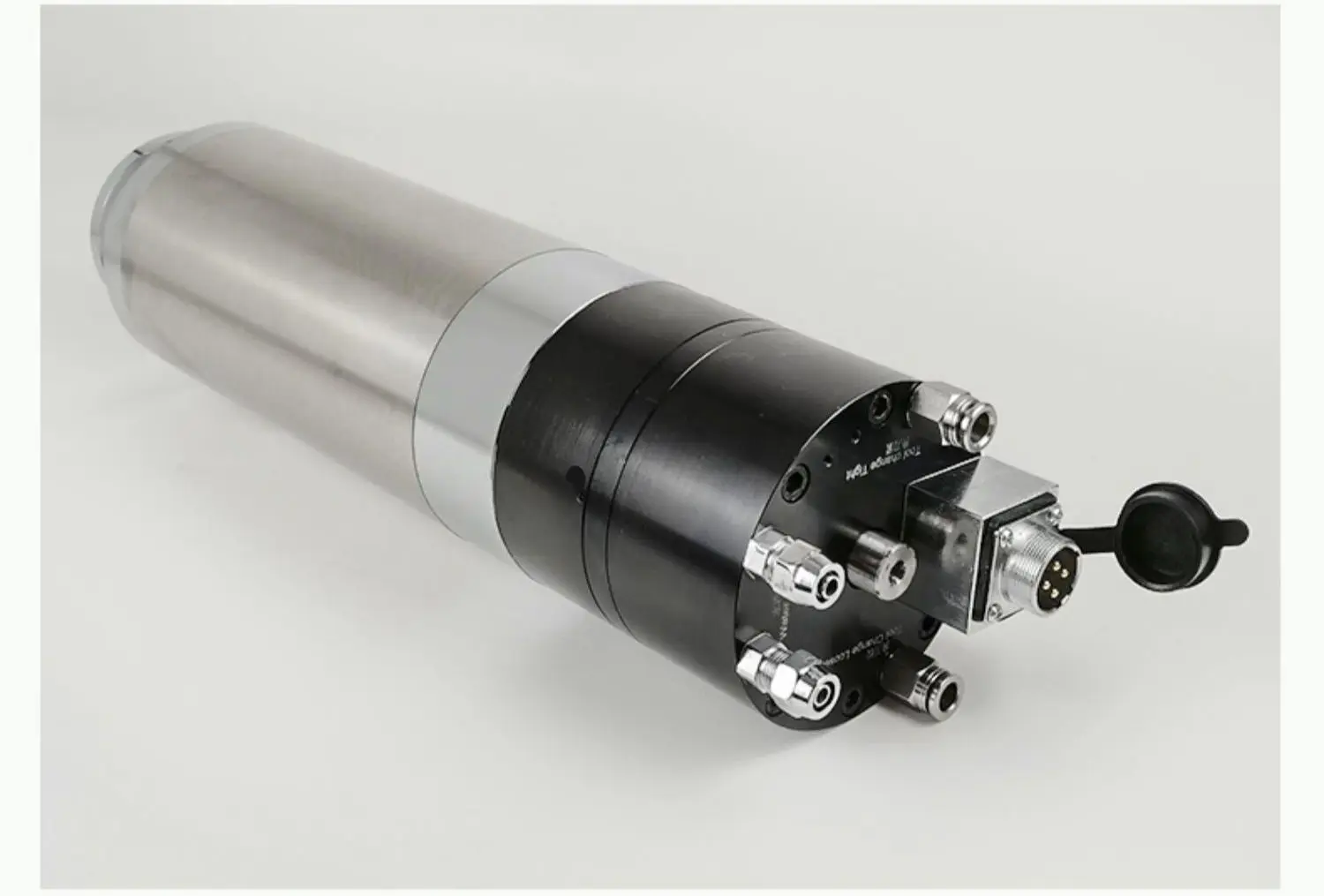

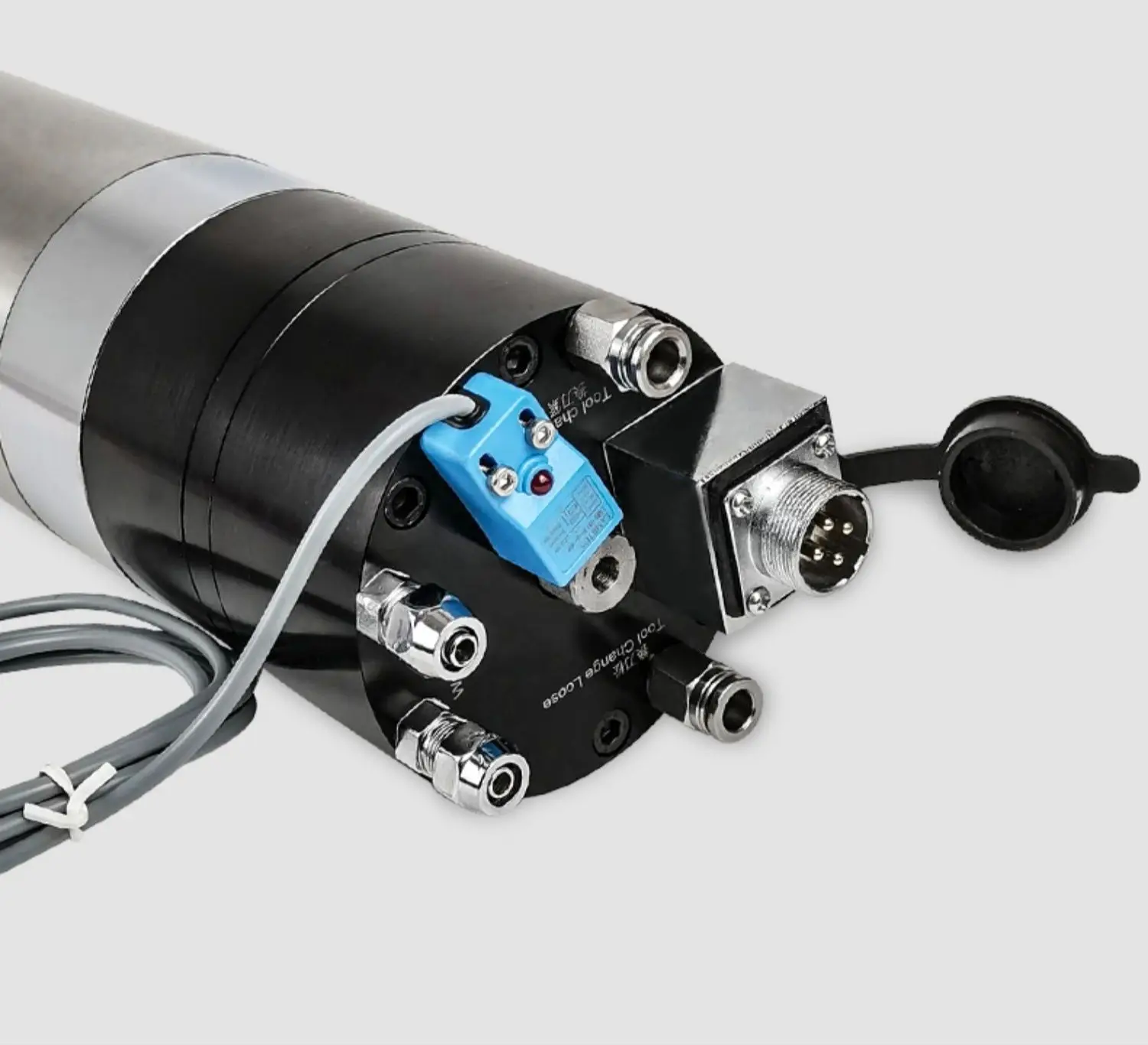

3kw 3.5kw ATC CNC Spindle BT30 Spindle For Cnc Router Engraving Machine 24000rpm 380V/220V 24000rpm

Description:

3kw 3.5kw BT30 ATC CNC Spindle 24000rpm 220V/380V for CNC Router Engraving Machine


down load to pdf

product details

3kw 3.5kw ATC CNC Spindle BT30 Spindle For Cnc Router Engraving Machine 24000rpm 380V/220V 24000rpm


  • Hign-concerned Chemical
    None
    Certification
    CE
  • Origin
    Mainland China
    Brand Name
    fullmida
  • Drive
    MOTOR
    Maximum Torque
    4N.M
  • Operating Speed
    24000RPM
    Model Number
    ATC
  • Application
    Milling
    rated voltage
    220V /380v
  • rated current
    11A/7A
    rated /max. frequency
    400/600hz
  • Number of poles of the motor
    4
    spindle taper
    bt30
  • change tool mode
    Pneumatic tool change
    Bearing distribution
    front 2pcs back 1pc
  • Lubrication method
    Grease lubrication
    Mounting method
    clamp
  • Cooling method
    water cooling
    Net weight
    13kg
  • bearing type
    ceramic ball bearing
    Suitable places
    milling engraving machine
  • Product features
    high speed milling spindle
    Application scenarios
    engraving machine / 3C electronic high-speed drilling / Mold processing / Woodworking furniture processing



see more our cnc machining center
BT30 ATC spindle, 3kw BT30 spindle, 3.5kw BT30 spindle, 24000rpm CNC spindle, CNC router spindle, engraving machine spindle,3kw 3.5kw ATC CNC spindle, BT30 spindle 24000rpm, 220V 380V BT30 spindle, ATC spindle for CNC router engraving machine, automatic t
