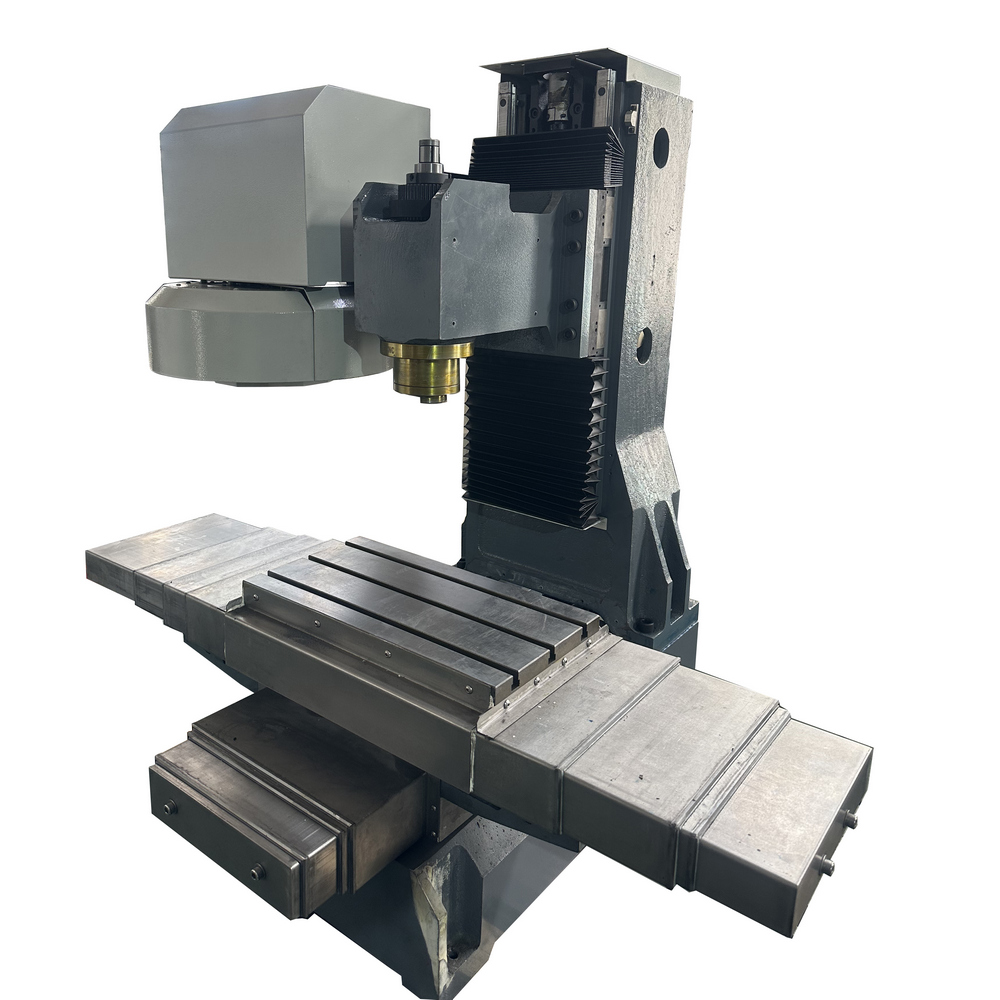

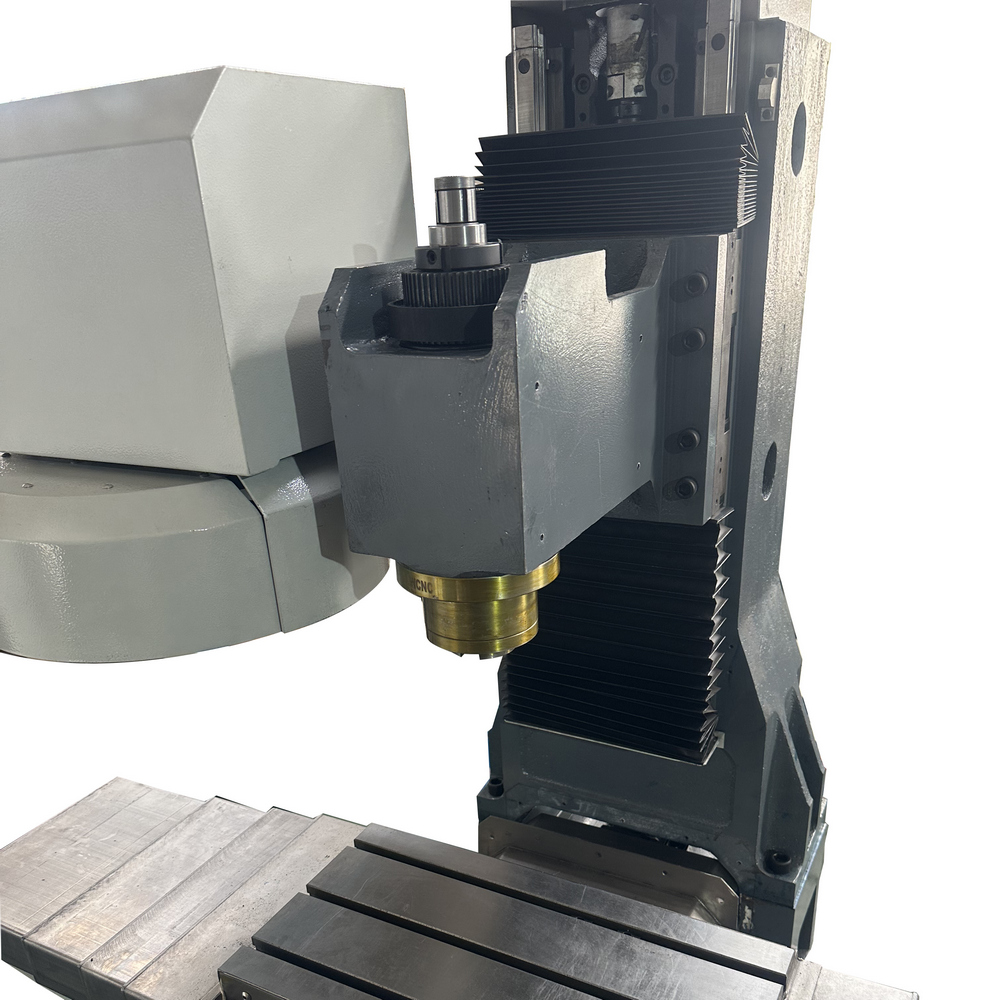

DIY Frame Machine  Vmc425 Cnc Milling Machine Mill Steel Copper 12 Tools Magazine Bt30 Spindle Atc

Drive and motor ：X Y Z   750W servo

Cnc System： Ky1000 (with handwheel)

Spindle set

Inverter : 4KW vector inverter

Spindle : BT30 3.5KW electric spindle 24000 RPM

Machine tool accessories

With base dimensions : 1300*1200*1900mm

Cutting fluid, main shaft pump with water tank

Sprinkler, water pipe,  lighting included

4th shaft worm gear  high precision four-axis reducer

125 chuck not included

Tools magazine:12 tools, not included,can be optional.

Travel X450 Y250 Z350

Guide rail Taiwan Intime ball guide rail X Y20  Z25

Taiwan high-tech ball screw C5 XY2005 Z2505

The weight of the machine is about 700KG

T slot M8*3

Triaxial straightness 0.01/200MM

Triaxial perpendicularity 0.01/200MM

Worktable flatness 0.01/200MM

Table size 425*225MM

XYZ run to 25000MM/MIN

Linear axis repeated positioning accuracy <0.01MM
