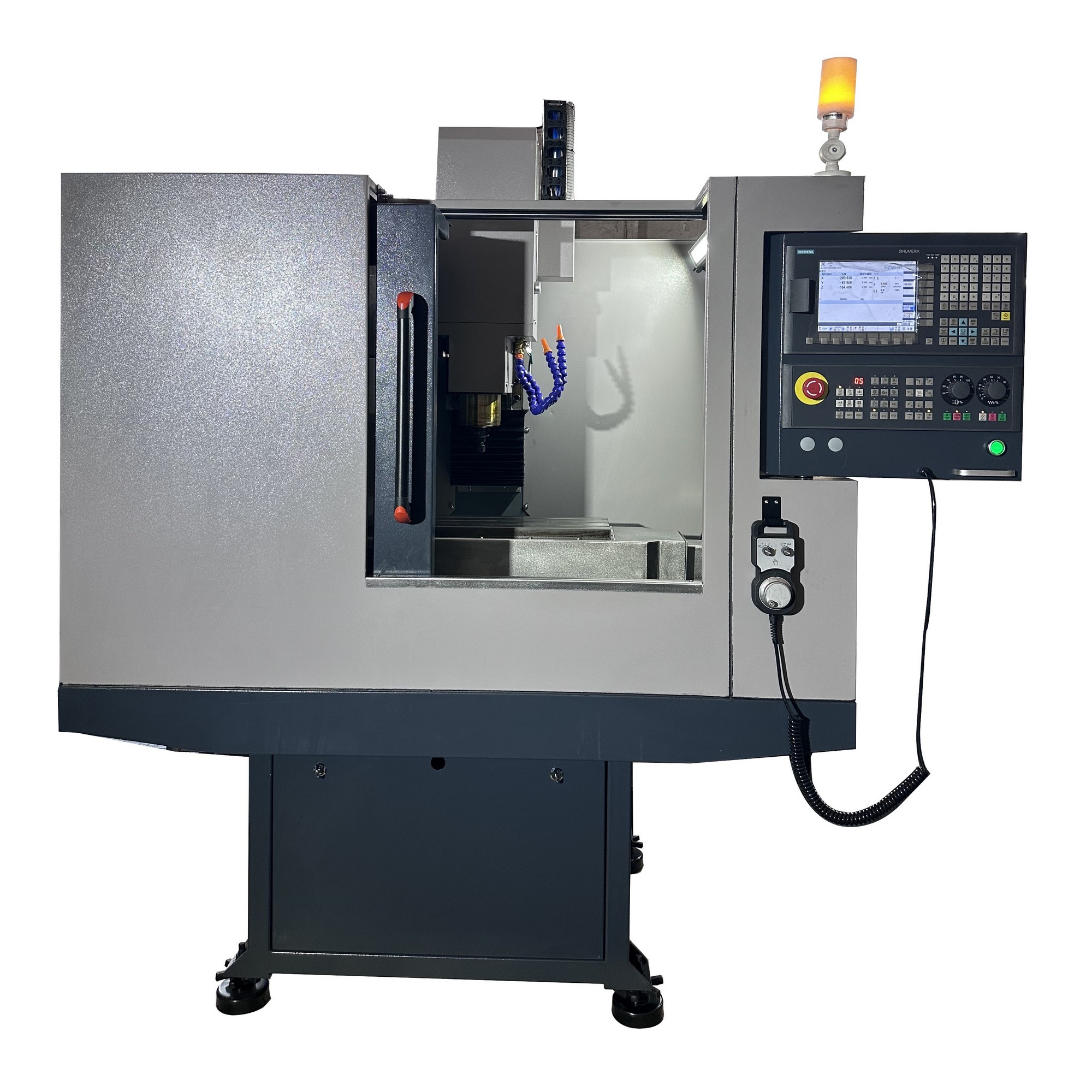

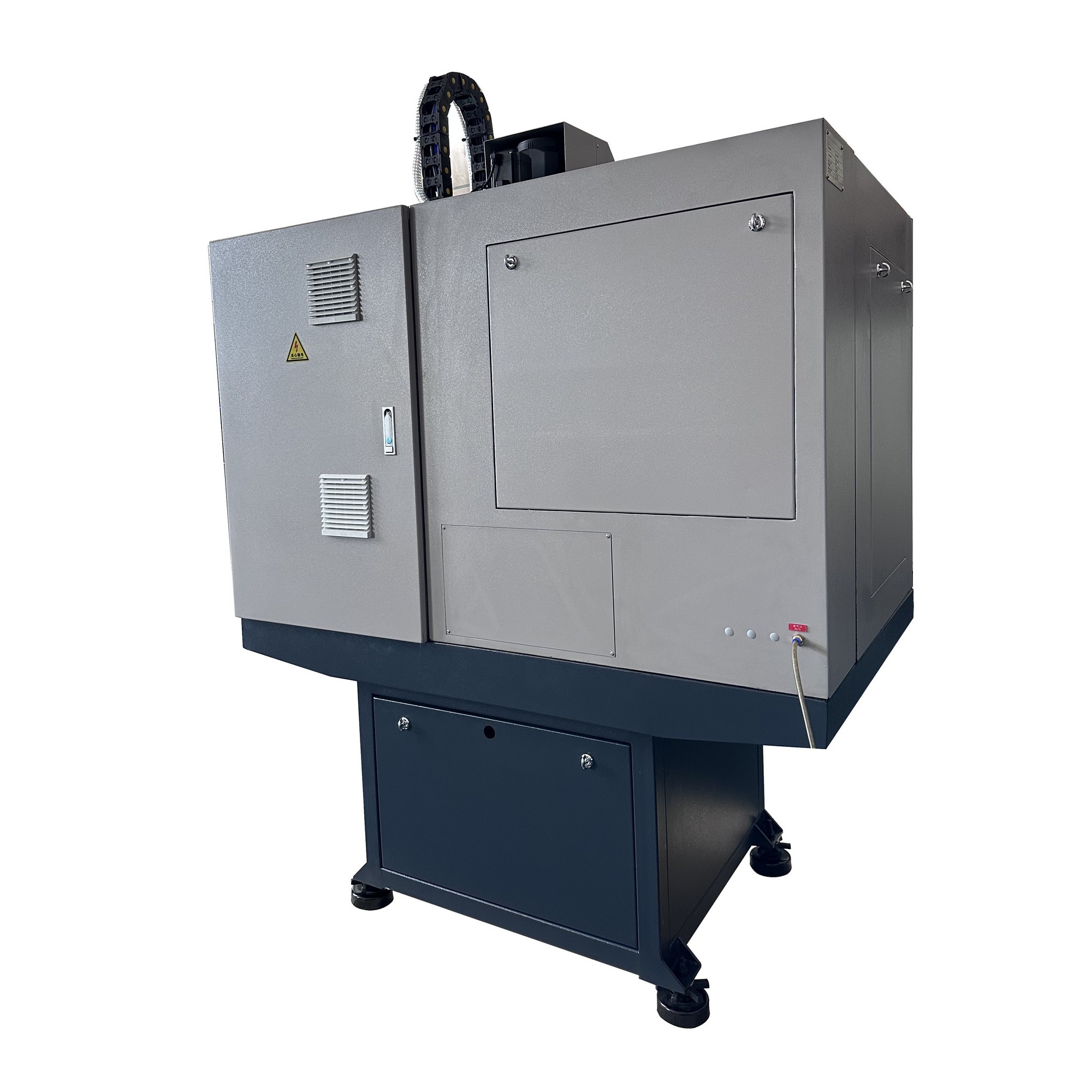

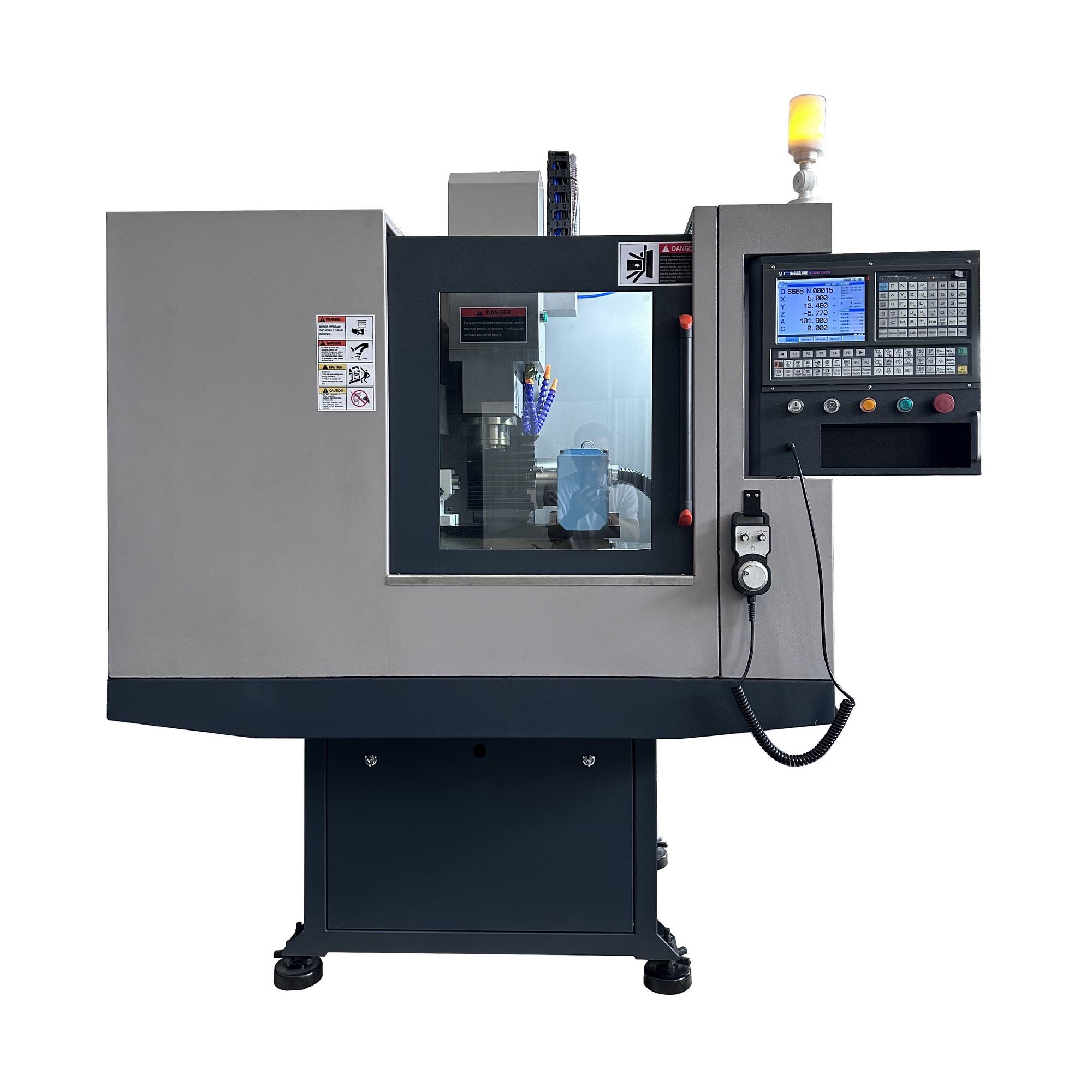

VMC4020 small vertical machining center

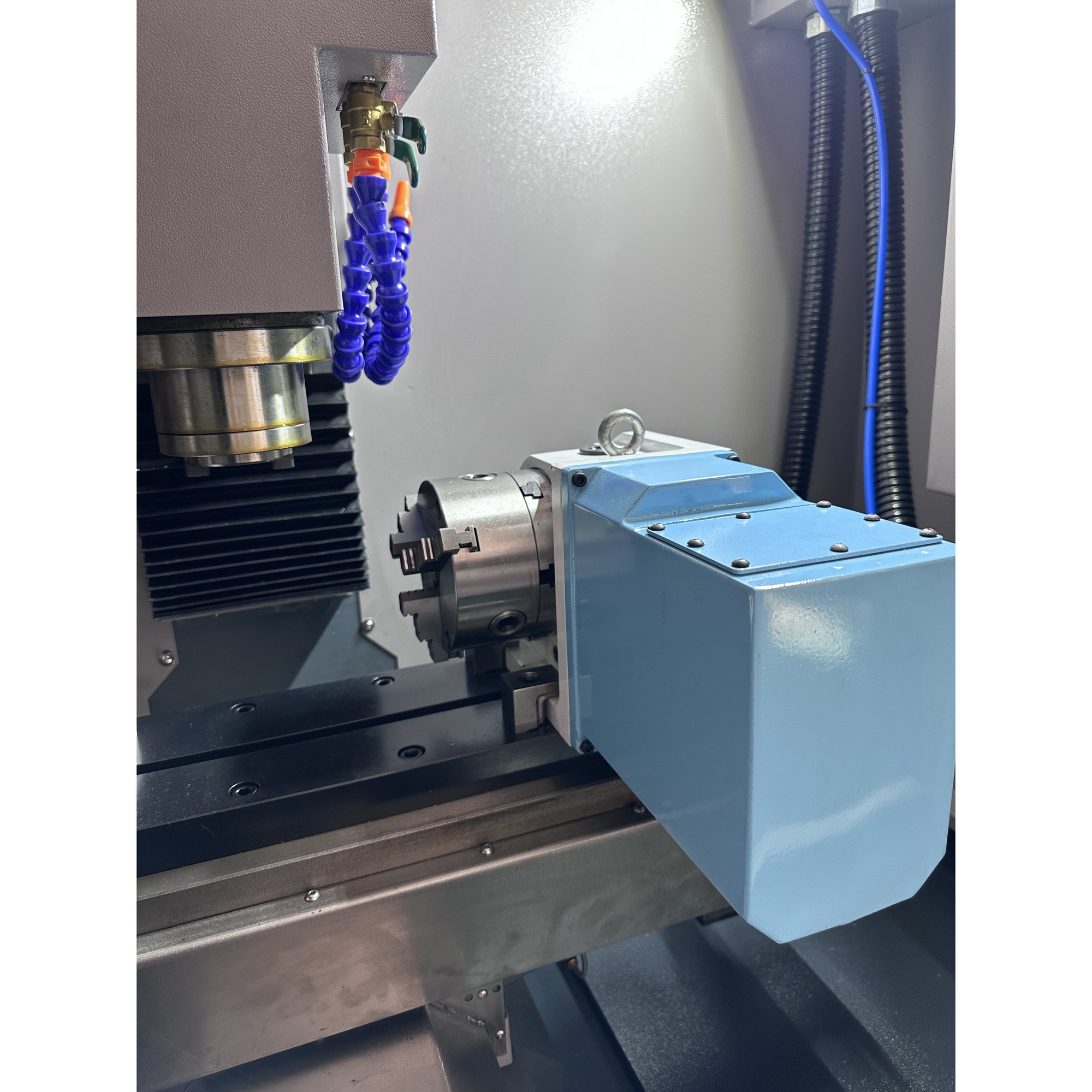

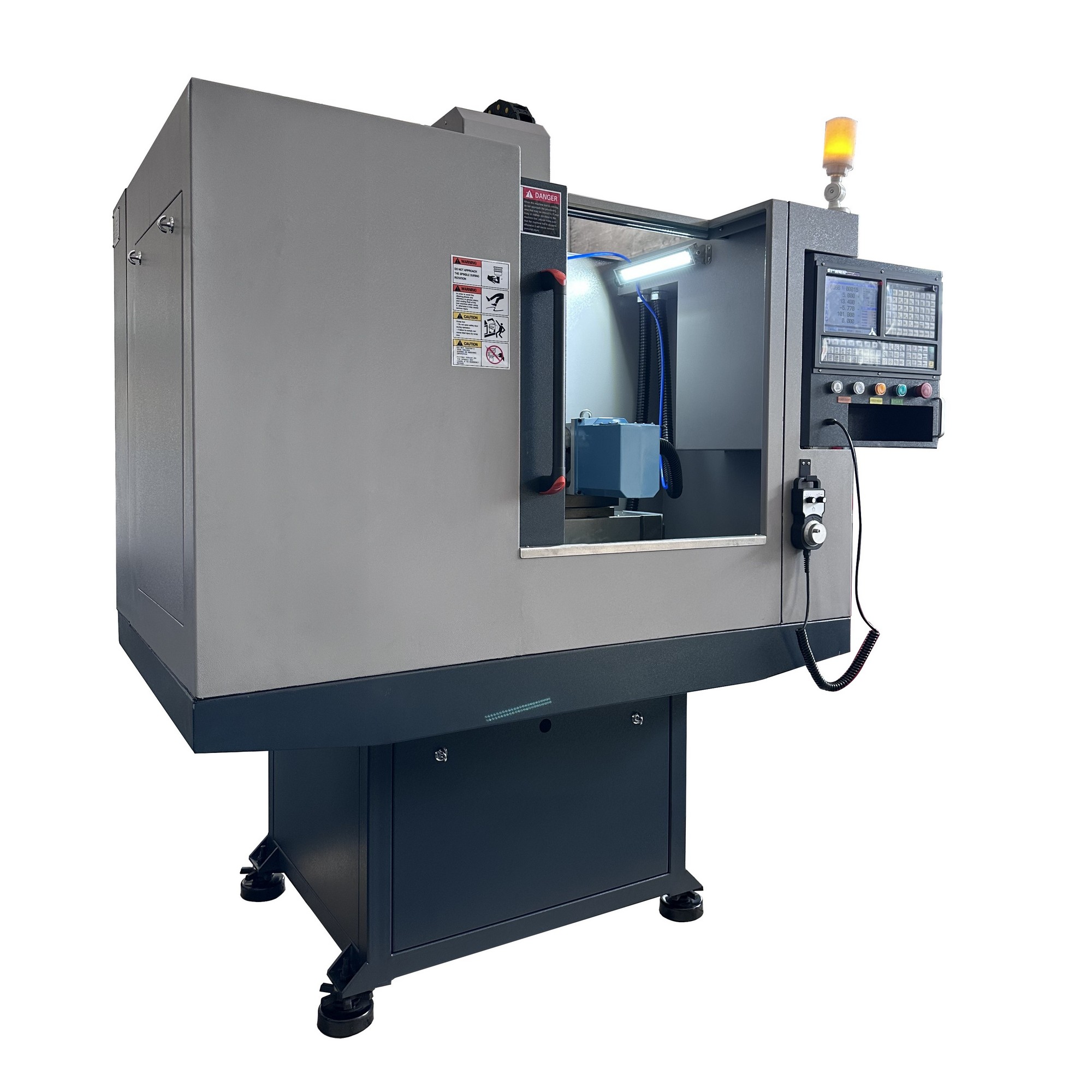

features high precision, high rigidity and compact footprint, suitable for high-speed machining of various metallic materials. It adopts reliable CNC system, BT30 mechanical spindle and 12-station disc tool magazine, supports milling, drilling and other machining operations. It can be equipped with precision dividing table to realize 4-axis or 5-axis machining.

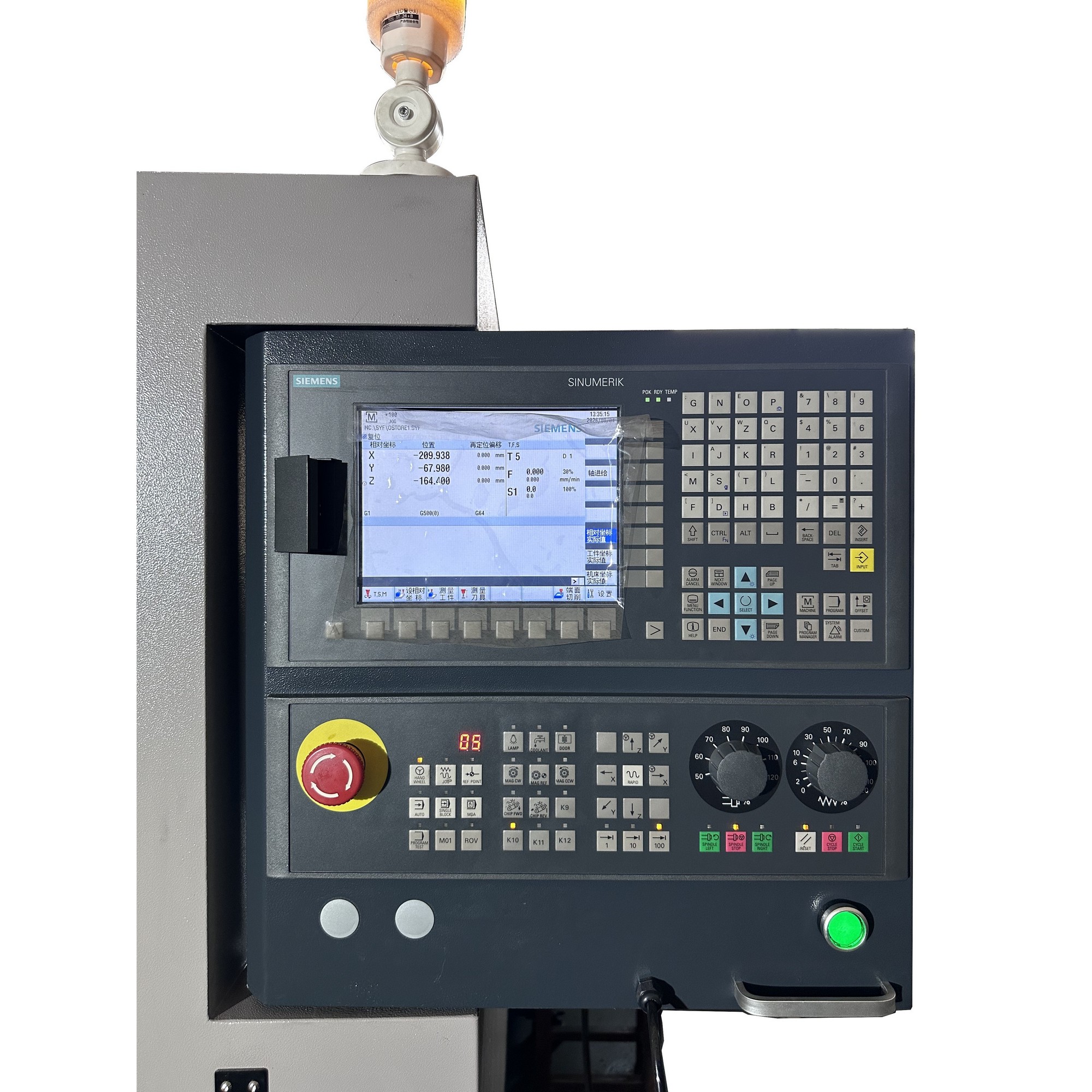

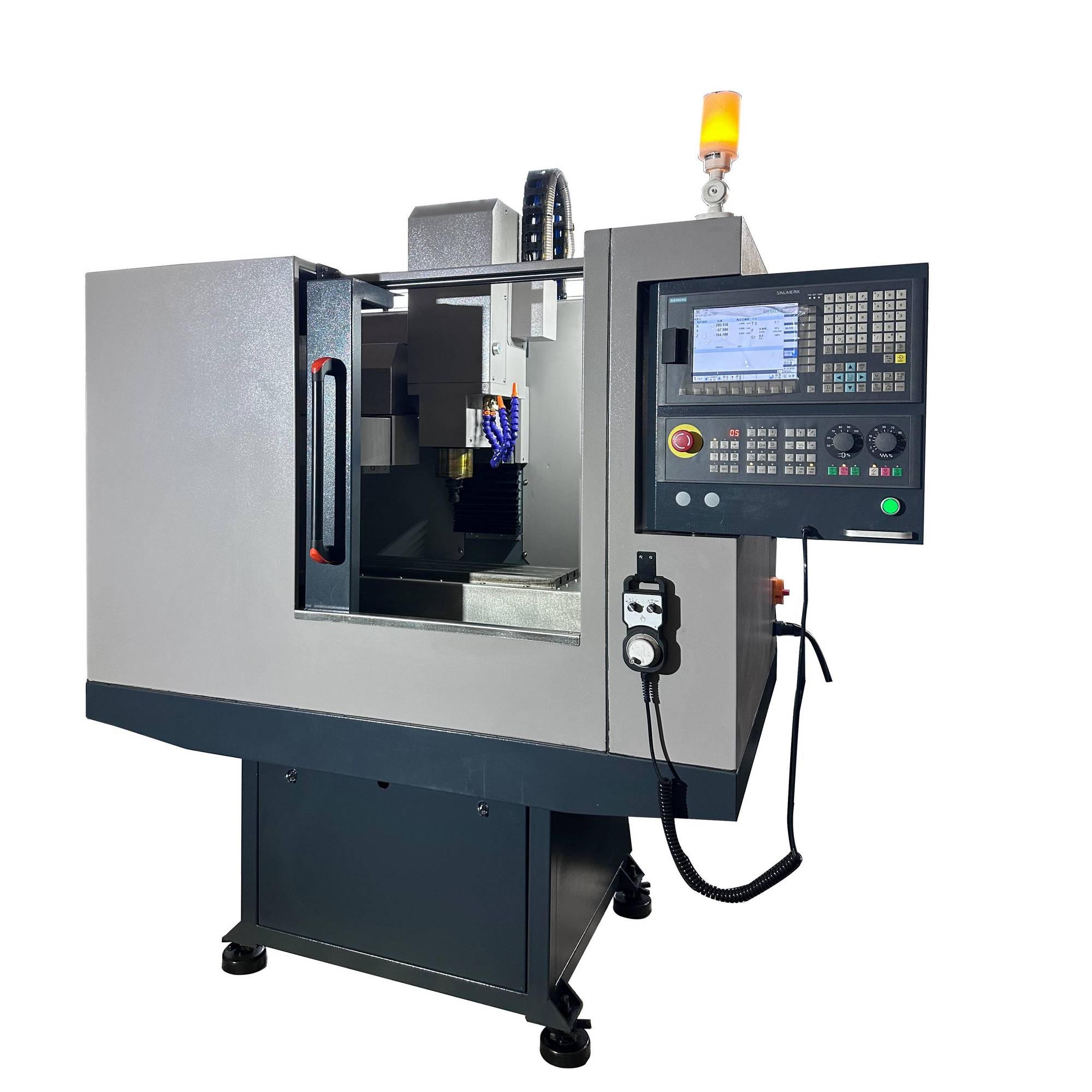

Optional Siemens Fanuc Controller, Yaskawa Servo Motor

VMC4020 Vertical Machining Center Specifications

Travel & Table

1. XYZ axis travel: X360, Y200, Z350 mm

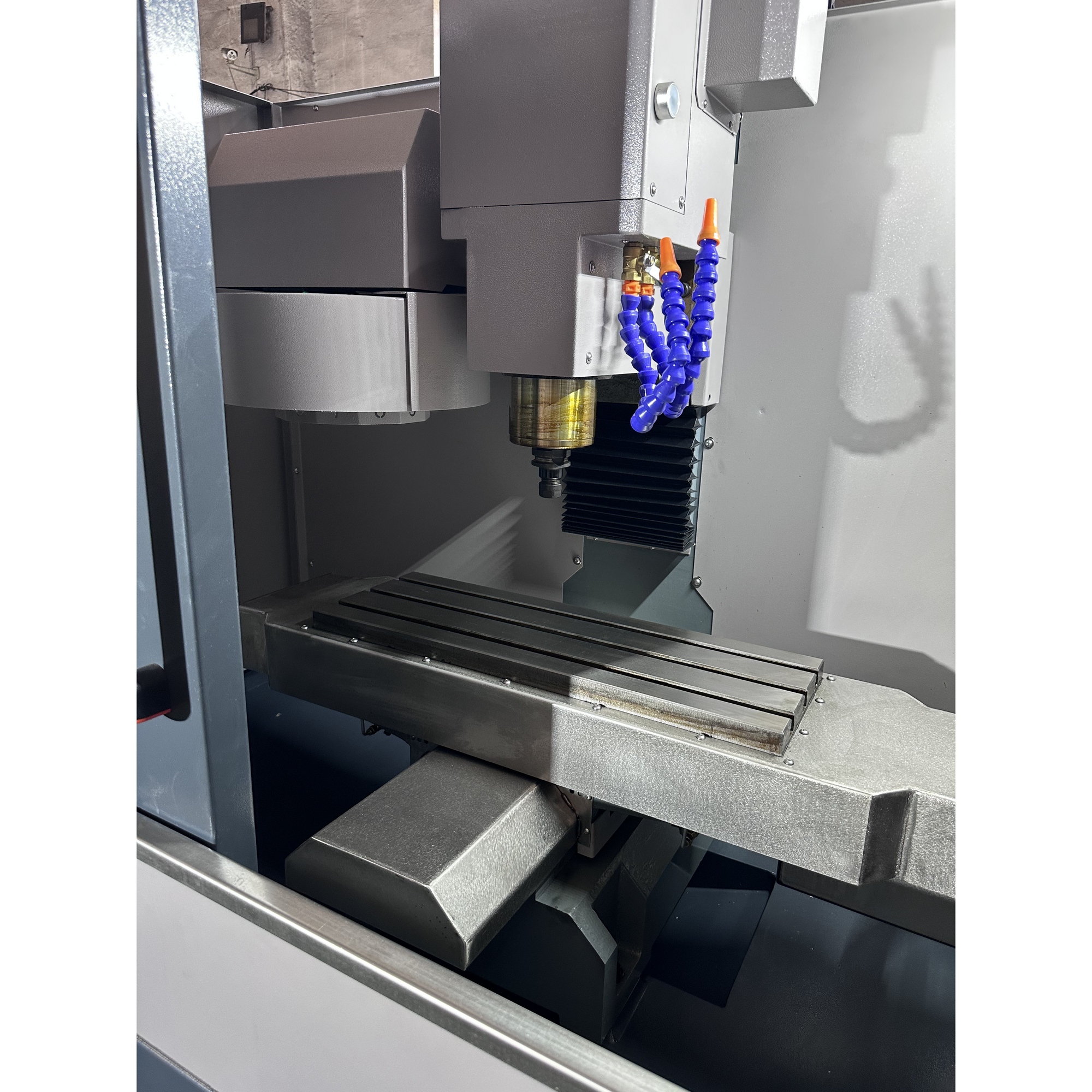

2. Table size: 550 × 200 mm

Accuracy

3. Positioning accuracy: 0.02 mm
4. Repeat positioning accuracy: 0.01 mm
5. Flatness of worktable: 0.03 mm
6. XYZ axis verticality: 0.01 mm / 200 mm

Spindle

7. Z axis clearance height: 350 mm
8. Spindle power: 2.2 kw
9. Spindle speed: 8000 r/min
10. Spindle taper: BT30

Drive & Feed

11. Drive motor specification: 2.4 Nm, 3000 r/min
12. Maximum feed speed: 15000 mm/min

Electrical & Weight

13. Working voltage: 220 V
14. Net weight: 680 kg

Dimension

15. Overall machine size: 1550 × 1150 × 1900 mm

Standard Configuration

16. CNC system: GuangZhou KeYuan 1000MC
17. Spindle motor: AC servo motor
18. Feed shaft motor: AC servo motor
19. Linear guide: 20 ball linear guide
20. Ball screw: 2005 ball screw
21. Machine material: HT250 grey cast iron
22. Protection cover: Organ hood + base + metal cover
23. Lubrication system: Automatic oil pump + oil line
24. Spindle cooling: Air cooling
25. Cutting cooling: Cutting fluid pump + cutting oil circuit
26. Tool magazine type: Disc type tool magazine
27. Tool magazine capacity: 12 tools

Optional Accessories

28. Taiwan Syntec CNC system
29. PRT - 50 Precision NC turntable
30. BT30 high speed motorized spindle
31. C5 grinding ball screw
